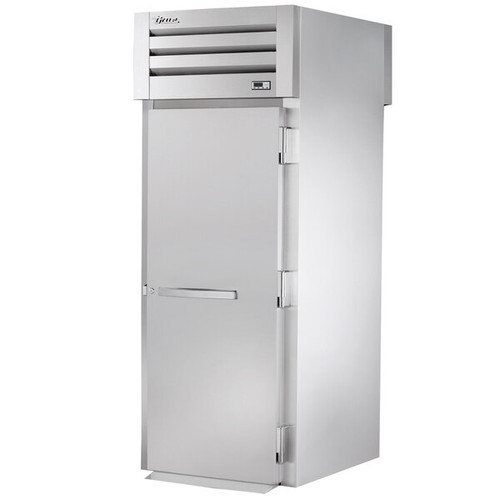

The True STG1RRT-1S-1S-HC SPEC SERIES roll-thru refrigerator provides access through solid swing doors at the front and rear. It features stainless steel doors with matching aluminum sides, aluminum interior side walls and back, and a stainless steel floor and ceiling. Its top-mounted, self-contained refrigeration system uses an expansion valve and R290 hydrocarbon refrigerant to maintain cabinet temperatures of 33°F to 38°F. Electronically commutated evaporator and condenser fan motors provide consistent airflow while reducing heat production and energy consumption. The evaporator sits outside the food zone, and high-density polyurethane insulation fills the cabinet structure and solid doors.

Stainless steel ramps support loading through either end. The cabinet accepts roll-in racks with inboard castors measuring up to 27" L × 29" D × 66" H; racks are supplied by others. Interior bumpers protect the walls from carts. Self-closing doors feature a 120° stay-open position, lifetime-guaranteed bolt-style locks, heavy-duty all-metal handles, and external cam-lift hinges. Safety-shielded LED lighting illuminates the interior, while an exterior digital display shows temperature in °F or °C. An epoxy-coated evaporator resists corrosion, and magnetic door gaskets remove without tools for cleaning. The unit includes a 9-foot cord and NEMA 5-15P plug for connection to a dedicated 115V, 15-amp outlet.

Standard Features

• Two solid swing doors: one front and one rear.
• Stainless steel doors with matching aluminum sides.
• Aluminum interior side walls and back; stainless steel floor and ceiling.
• Top-mounted, self-contained refrigeration system with expansion valve (TXV).
• R290 refrigerant with zero ozone depletion potential and 0.02 global warming potential.
• Maintains cabinet temperatures of 33°F–38°F.
• Electronically commutated evaporator and condenser fan motors.
• Evaporator positioned outside the food zone.
• High-density polyurethane insulation throughout the cabinet structure and solid doors.
• Heavy-gauge stainless steel ramps.
• Accepts roll-in racks with inboard castors up to 27" L × 29" D × 66" H; racks supplied by others.
• Self-closing doors with 120° stay-open feature.
• Lifetime-guaranteed bolt-style locks and heavy-duty all-metal handles.
• Lifetime-guaranteed external cam-lift hinges; three per door section.
• Field-reversible hinges.
• One-piece magnetic door gaskets removable without tools.
• Safety-shielded LED interior lighting.
• Exterior digital temperature display in °F or °C.
• Epoxy-coated evaporator and protective interior bumpers.
• NSF/ANSI Standard 7 compliant for open food products.
• 1/2 HP; 115V/60 Hz/1-phase; 6.8 amps.
• Includes 9-foot cord and NEMA 5-15P plug; requires a dedicated 15-amp outlet.
• Cabinet dimensions: 35" W × 83 3/4" H × 37 1/2" D.
• Depth excludes 4 1/4" on each side for ramps; height excludes 1" for mechanical components.
• Made in USA.
