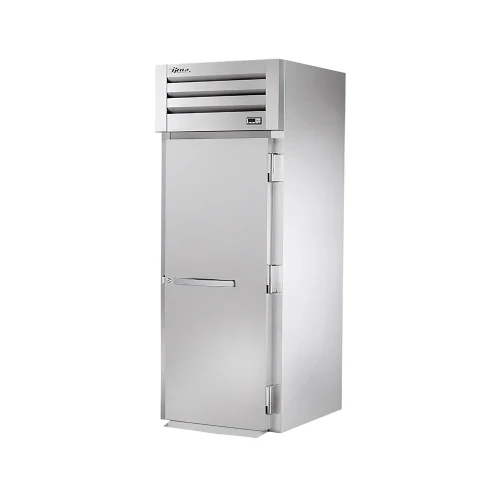

The True STR1FRI-1S-HC SPEC SERIES is a one-section roll-in freezer designed to maintain a cabinet temperature of -10°F for storing frozen foods and ice cream. Its self-contained expansion valve refrigeration system uses R290 hydrocarbon refrigerant, with an extra-large evaporator coil balanced with the compressor and condenser. Electronically commutated evaporator and condenser fan motors provide consistent airflow while producing less heat. The top-mounted refrigeration system positions the evaporator outside the food zone to maximize storage space. Automatic defrost is time-initiated and temperature-terminated, with an evaporator fan motor delay during the defrost cycle.

The cabinet features a stainless steel door, front, and exterior sides, together with stainless steel interior side walls, back, floor, door liner, and ceiling. High-density polyurethane insulation fills the cabinet structure and solid door. It accommodates a roll-in rack with inboard castors measuring up to 27"L × 29"D × 66"H, supplied separately. A heavy-gauge stainless steel ramp supports loading, while interior bumpers protect the cabinet walls. The self-closing door features a 120° stay-open position, a lifetime-guaranteed bolt-style lock, metal handle, and external cam-lift hinges. Safety-shielded LED lighting, an exterior digital temperature display, a removable magnetic gasket, and an epoxy-coated evaporator complete the standard equipment.

Standard Features

• One-section roll-in freezer with one solid stainless steel swing door.
• Stainless steel door, front, and exterior sides.
• Stainless steel interior side walls, back, floor, door liner, and ceiling.
• Self-contained expansion valve refrigeration system using R290 hydrocarbon refrigerant.
• Maintains a cabinet temperature of -10°F for frozen foods and ice cream.
• Extra-large evaporator coil balanced with the compressor and condenser.
• Electronically commutated evaporator and condenser fan motors.
• Top-mounted refrigeration system with the evaporator positioned outside the food zone.
• Automatic, time-initiated, temperature-terminated defrost.
• Automatic evaporator fan motor delay during the defrost cycle.
• Cabinet and solid door insulated with foamed-in-place, high-density polyurethane.
• Accommodates a roll-in rack with inboard castors up to 27"L × 29"D × 66"H; rack supplied by others.
• One heavy-gauge stainless steel ramp.
• Interior bumpers protect cabinet walls from roll-in carts.
• Self-closing door with a 120° stay-open feature.
• Lifetime-guaranteed bolt-style door lock.
• Lifetime-guaranteed heavy-duty all-metal door handle.
• Lifetime-guaranteed external cam-lift hinges; three per door section.
• One-piece magnetic door gasket removable without tools.
• Safety-shielded LED interior lighting.
• Exterior digital temperature display available in °F or °C.
• Epoxy-coated evaporator for corrosion protection.
• Factory pre-wired for a dedicated 115V/60Hz/1-phase, 15-amp outlet.
• Includes a 9-foot cord and NEMA 5-15P plug.
• NSF/ANSI Standard 7 compliant for open food products.
