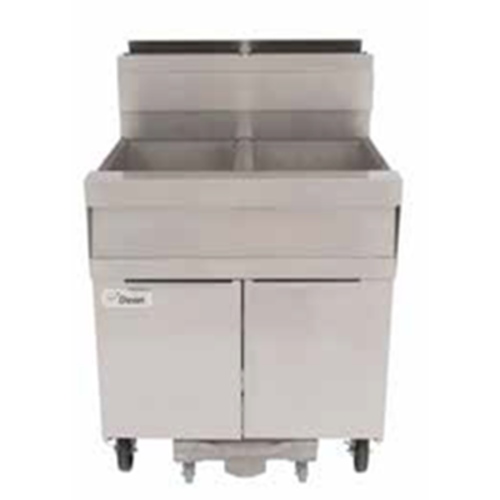

The Dean SCFD260G from Frymaster’s Decathlon D60 series is a dual frypot, high-capacity gas fryer system designed for commercial kitchens that demand maximum productivity, efficiency, and consistent results. Each frypot features a 75 lb oil capacity and a large 18" x 18" cooking area, allowing operators to handle high-volume production and diverse menu requirements with ease. The integrated filtration system simplifies oil management, extending oil life and reducing operating costs while improving workflow efficiency.

Equipped with Frymaster’s Thermo-Tube heat transfer system, the fryer delivers enhanced heat distribution through increased surface area, resulting in faster recovery times and reduced energy consumption. The wide cold zone design captures sediment below the cooking area, preserving oil quality and ensuring consistent food output. With precise RTD temperature control, melt cycle functionality, and durable stainless steel construction, the SCFD260G is built for reliability in demanding environments. Its dual-frypot configuration significantly increases output while maintaining efficient use of space, making it ideal for high-volume foodservice operations.

Key Features

• Dual frypot configuration for increased production capacity
• Large 75 lb oil capacity per frypot (150 lb total system capacity)
• Spacious 18" x 18" frying area per frypot for high-volume cooking
• Thermo-Tube heat transfer system with enhanced surface area for improved efficiency
• 150,000 BTU/hr input per frypot for powerful performance and rapid recovery
• Built-in filtration system for extended oil life and reduced maintenance
• Wide cold zone to trap sediment and maintain oil quality
• RTD 1° compensating temperature probe for precise temperature control
• Melt cycle and boil-out mode for improved oil management
• Combination gas valve with regulator for safe and consistent operation
• Tube-style frypot design for efficient heat distribution
• Stainless steel frypot, cabinet, and door construction for durability
• Drain safety switch for safe filtration operation

Important Specifications (Model SCFD260G)

Capacity & Cooking Area

• Oil Capacity: 75 lbs (37 liters) per frypot (150 lbs total)
• Frying Area: 18" x 18" x 3.75" per frypot

Performance & Gas System

• Power Output: 150,000 BTU/hr (≈44 kW) per frypot (300,000 BTU total)
• Gas Types: Natural Gas / Propane / Mixed gas
• Gas Pressure:
  • Natural Gas: 6"–14" W.C.
  • Propane: 9"–14" W.C.
  • Mixed Gas: 11"–14" W.C.
• Gas Connection: 1" NPT (multi-frypot system)

Construction & System Design

• Pot Type: Tube-type frypot
• Heating System: Thermo-Tube heat transfer design
• Filtration System: Built-in filtration (8 GPM system referenced for series)
• Temperature Control: RTD probe (1° compensating)
• Additional Modes: Melt cycle and boil-out mode
• Material: Stainless steel frypot, door, and cabinet sides

Dimensions (from page 2 table)

• Width: 40.4" (102.6 cm)
• Depth: 38.3" (97.2 cm)
• Height: 46.3" (117.7 cm)
• Drain Height: 11.5" (29.2 cm)

Weight & Shipping

• Unit Weight: 417 lbs (189 kg)
• Crated Dimensions: 53" W × 43" D × 55" H

Electrical Requirements (for controls & filtration)

• Controls: 120V / 1A (domestic)
• Filter System: 120V / 8A

Included Accessories

• (2) Twin baskets per frypot (total 4 baskets)
• Basket hangers and support racks
• Casters (standard for filter models)

Installation & Clearance

• Front Clearance: 36"
• Side/Rear Clearance: 6"

Available Options & Configurations

• Models: D160G (single), SCFD260G, SCFD360G, SCFD460G (multi-frypot systems)
• Controller: Thermatron (standard)
• External oil discharge (front or rear)
• Spreader cabinet for additional workspace
• Optional accessories: fryer covers, splash shields, sediment trays, multiple basket configurations
