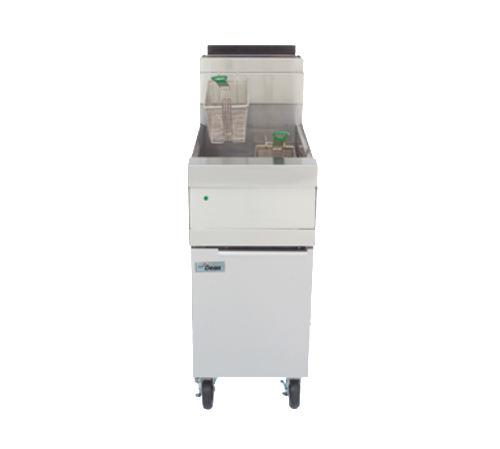

The Dean D160G from Frymaster’s Decathlon D60 series is a high-performance gas fryer engineered for demanding commercial kitchens that require large capacity, fast recovery, and consistent results. With a generous 75 lb oil capacity and a spacious 18" x 18" frying area, it supports a wide variety of menu items—from high-turnover foods like fries to larger batch cooking—while maintaining efficiency in oil and energy usage.

Powered by the advanced Thermo-Tube heat transfer system, the fryer maximizes heat transfer efficiency through increased surface area, reducing heat stress on the oil and extending its usable life. The wide cold zone design captures sediment below the cooking area, ensuring cleaner oil and better-tasting food. Combined with precise RTD temperature control, electronic gas system components, and durable stainless steel construction, the D160G delivers reliable performance and long-term durability. Designed for high-volume operations, it provides an excellent balance of capacity, efficiency, and operational control.

Key Features

• Large 75 lb oil capacity for high-volume frying operations
• Spacious 18" x 18" frying area supporting multiple basket loads
• Thermo-Tube heat transfer system with increased surface area for improved efficiency
• 150,000 BTU/hr input per frypot for powerful performance and fast recovery
• Wide cold zone to trap sediment and maintain oil quality
• RTD 1° compensating temperature probe for precise temperature control
• Melt cycle and boil-out mode for improved oil management and maintenance
• Combination gas valve with regulator for safe and consistent operation
• Tube-style frypot design for efficient heat distribution
• Stainless steel frypot, cabinet, and door construction for durability
• Drain safety switch (for filtration models)
• Designed for energy efficiency and extended oil life

Important Specifications (Model D160G)

Capacity & Cooking Area

• Oil Capacity: 75 lbs (37 liters) per frypot
• Frying Area: 18" x 18" x 3.75"

Performance & Gas System

• Power Output: 150,000 BTU/hr (≈44 kW) per frypot
• Gas Types: Natural Gas / Propane / Mixed gas
• Gas Pressure:
  • Natural Gas: 6"–14" W.C.
  • Propane: 9"–14" W.C.
  • Mixed Gas: 11"–14" W.C.
• Gas Connection: 3/4" NPT (single frypot)

Construction & System Design

• Pot Type: Tube-type frypot
• Heating System: Thermo-Tube heat transfer design
• Temperature Control: RTD probe (1° compensating)
• Additional Modes: Melt cycle and boil-out mode
• Material: Stainless steel frypot, door, and cabinet sides

Dimensions (from page 2 table)

• Width: 20.4" (51.8 cm)
• Depth: 38.1" (96.7 cm)
• Height: 45.9" (116.7 cm)
• Drain Height: 19.75" (50 cm)

Weight & Shipping

• Unit Weight: 255 lbs (116 kg)
• Crated Dimensions: 29" W × 43" D × 55" H

Electrical Requirements (for controls & accessories)

• Controls: 120V / 1A (domestic)
• Filter System: 120V / 8A (for filtration models)

Included Accessories

• (2) Twin baskets per frypot
• Basket hangers and support racks
• Adjustable 6"–7" steel legs
• Casters (for filtration models)

Installation & Clearance

• Front Clearance: 36"
• Side/Rear Clearance: 6"

Available Options & Configurations

• Models: D160G (single), SCFD260G, SCFD360G, SCFD460G (multi-frypot systems)
• Controller: Thermatron (standard)
• Optional casters (D160 only)
• External oil discharge (front or rear)
• Spreader cabinet for additional workspace
• Compatible with multi-fryer battery configurations
