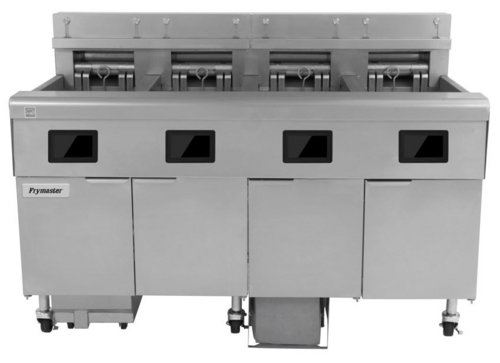

The Frymaster 4FQE30U FilterQuick® electric fryer is a quad frypot, high-capacity fryer system engineered for commercial kitchens that require maximum production, advanced automation, and reduced operating costs. Featuring four 30 lb open frypots with fully automatic filtration and automatic top-off technology, the system delivers exceptional frying capacity while using up to 40% less oil and approximately 10% less energy than traditional 50 lb fryers.

Designed with Frymaster’s advanced FilterQuick® system and FQ4000 easyTouch® touchscreen controller, the fryer simplifies cooking, filtering, and recipe management through intuitive programmable controls. The optional Oil Quality Sensor (OQS) continuously monitors oil condition to help maximize oil life while maintaining consistent food quality. Proprietary low-watt density heating elements, Eco Mode energy management, and independent frypot construction enhance efficiency, reliability, and serviceability. Built with durable stainless steel construction and a fully automatic closed-cabinet filtration system, the 4FQE30U is an ideal solution for high-volume kitchens focused on productivity, sustainability, and operational efficiency.

Key Features

• Quad open-pot frypot configuration for maximum production capacity
• 30 lb oil-conserving frypots using up to 40% less oil than standard 50 lb fryers
• Fully automatic FilterQuick® filtration system with rear oil flush
• Automatic Top Off (ATO) system for maintaining optimal oil levels
• FQ4000 easyTouch® touchscreen controller with programmable recipes and menu organization
• Optional Oil Quality Sensor (OQS) for real-time oil health monitoring
• Optional KitchenConnect® communication capability for connected kitchen management
• Proprietary self-standing, swing-up, low-watt density heating elements
• Deep cold zone for improved oil quality and reduced sediment contamination
• Eco Mode reduces idle energy consumption during low-demand periods
• Independent frypot construction for easier maintenance and continuous operation
• Innovative safety features preventing simultaneous vat filtration
• Stainless steel frypot, cabinet, and doors for durability and easy cleaning.

Important Specifications (Model 4FQE30U)

Capacity & Cooking Area

• Oil Capacity: 30 lbs (15 liters) per frypot (120 lbs total)
• Frying Area: 13" x 14" x 3.75" per frypot

Performance & Electrical System

• Power Output: 14 kW per frypot (56 kW total)
• Voltage Options (Domestic):
  • 208V
  • 240V
  • 480V
• Voltage Options (Export):
  • 220/380V
  • 230/400V
  • 240/415V

Electrical Requirements (Domestic)

• 208V:
  • 3-Phase: 39 A per frypot
• 240V:
  • 3-Phase: 34 A per frypot
• 480V:
  • 3-Phase: 17 A per frypot

Construction & System Design

• Pot Type: Open pot
• Heating Elements: Proprietary self-standing flat-bar low-watt density elements
• Temperature Control: Center-mounted RTD 1° action probe
• Filtration System: Fully automatic FilterQuick® filtration with rear oil flush
• Filter Pump: 8 GPM
• Oil Management: Automatic Top Off (ATO) and optional bulk oil system
• Material: Stainless steel frypot, doors, and cabinet sides

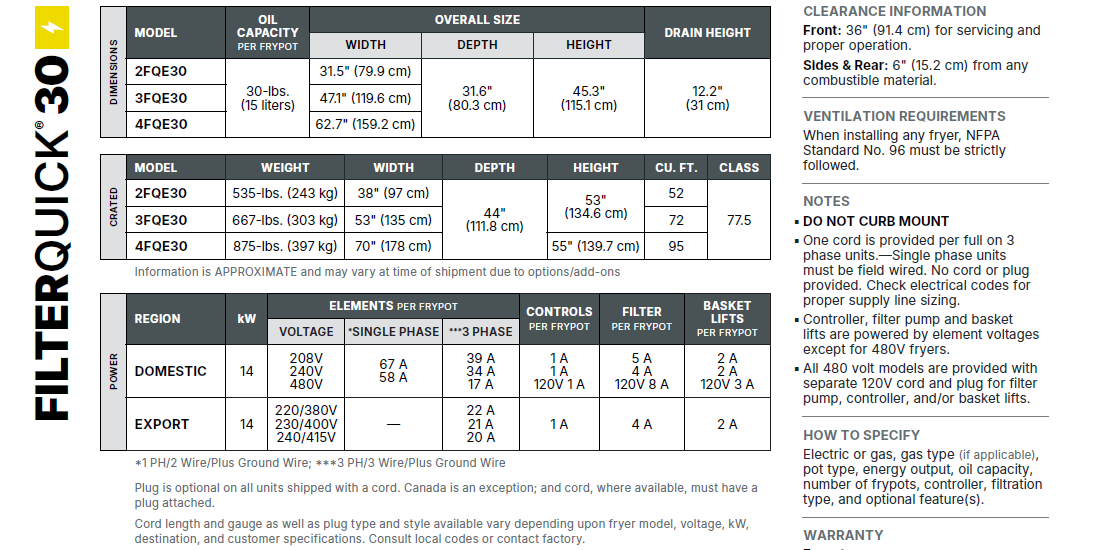

Dimensions (from specification tables)

• Width: 62.7" (159.2 cm)
• Depth: 31.6" (80.3 cm)
• Height: 45.3" (115.1 cm)
• Drain Height: 12.2" (31 cm)

Weight & Shipping

• Net Weight: 667 lbs (303 kg)
• Shipping Weight: 875 lbs (397 kg)
• Crated Dimensions: 70" W × 55" D × 53" H

Controls & Accessories

• Controller: FQ4000 easyTouch® (standard)
• Optional Basket Lifts
• Optional Oil Quality Sensor (OQS)
• Optional KitchenConnect® capability
• Includes frypot covers, splash shield, JIB holder, filter starter kit, and adjustable casters

Installation & Clearance

• Front Clearance: 24" minimum
• Side/Rear Clearance: 6" from combustible surfaces

Available Options & Configurations

• Models: 2FQE30U, 3FQE30U, 4FQE30U
• Optional basket lifts for automation
• Optional Oil Quality Sensor (OQS)
• Optional KitchenConnect® communication system
• Optional spreader cabinet
• Bulk oil disposal and fresh-fill systems
• Oil disposal caddy (ODC35)
• Mobile JIB box accessory
