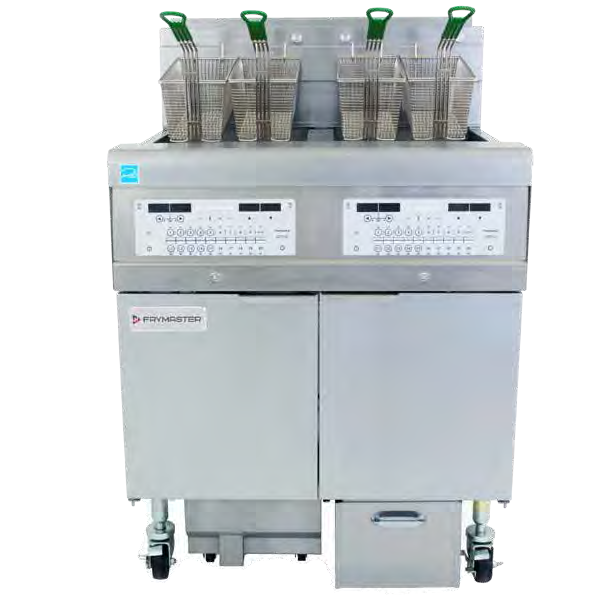

The Frymaster 2FQE30U FilterQuick® electric fryer is a high-efficiency, oil-conserving fryer system engineered for commercial kitchens seeking lower operating costs, simplified oil management, and consistent frying performance. Featuring dual 30 lb open frypots with automatic filtration and automatic top-off technology, the fryer delivers full-size production capacity while using 40% less oil and approximately 10% less energy than traditional 50 lb fryers.

Designed with Frymaster’s advanced FilterQuick® system and FQ4000 easyTouch® touchscreen controller, the unit simplifies cooking, filtering, and recipe management through intuitive controls and programmable functions. The optional Oil Quality Sensor (OQS) provides real-time monitoring of oil condition, helping operators maximize oil life while maintaining consistent food quality. Proprietary low-watt density heating elements, Eco Mode energy management, and independent frypot construction further improve efficiency, serviceability, and safety. Built with stainless steel construction and a fully automatic closed-cabinet filtration system, the 2FQE30U is ideal for high-volume operations focused on productivity, sustainability, and operational savings.

Key Features

• Dual open-pot frypot configuration for high production capacity
• 30 lb oil-conserving frypots using up to 40% less oil than standard 50 lb fryers
• Fully automatic FilterQuick® filtration system with rear oil flush
• Automatic Top Off (ATO) system for maintaining optimal oil levels
• FQ4000 easyTouch® touchscreen controller with programmable recipes and menu organization
• Optional Oil Quality Sensor (OQS) for real-time oil health monitoring
• Optional KitchenConnect® communication capability for connected kitchen management
• Proprietary self-standing, swing-up, low-watt density heating elements
• Deep cold zone for improved oil quality and reduced sediment contamination
• Eco Mode reduces idle energy consumption during low-demand periods
• Independent frypot construction for easier maintenance and continuous operation
• Innovative safety features preventing simultaneous vat filtration
• Stainless steel frypot, cabinet, and doors for durability and easy cleaning.

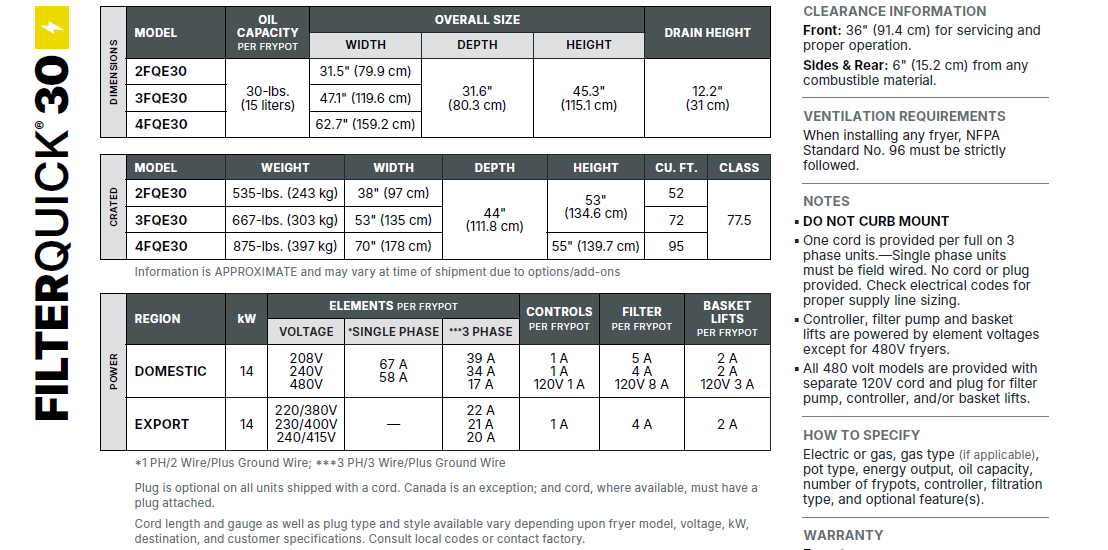

Important Specifications (Model 2FQE30U)

Capacity & Cooking Area

• Oil Capacity: 30 lbs (15 liters) per frypot (60 lbs total)
• Frying Area: 13" x 14" x 3.75" per frypot

Performance & Electrical System

• Power Output: 14 kW per frypot (28 kW total)
• Voltage Options (Domestic):
  • 208V
  • 240V
  • 480V
• Voltage Options (Export):
  • 220/380V
  • 230/400V
  • 240/415V

Electrical Requirements (Domestic)

• 208V:
  • 3-Phase: 39 A
  • Single Phase: 67 A
• 240V:
  • 3-Phase: 34 A
  • Single Phase: 58 A
• 480V 3-Phase: 17 A

Construction & System Design

• Pot Type: Open pot
• Heating Elements: Proprietary self-standing flat-bar low-watt density elements
• Temperature Control: Center-mounted RTD 1° action probe
• Filtration System: Fully automatic FilterQuick® filtration with rear oil flush
• Filter Pump: 8 GPM
• Oil Management: Automatic Top Off (ATO) and optional bulk oil system
• Material: Stainless steel frypot, doors, and cabinet sides

Dimensions (from specification tables)

• Width: 31.5" (79.9 cm)
• Depth: 31.6" (80.3 cm)
• Height: 45.3" (115.1 cm)
• Drain Height: 12.2" (31 cm)

Weight & Shipping

• Net Weight: 305 lbs (138 kg)
• Shipping Weight: 535 lbs (243 kg)
• Crated Dimensions: 38" W × 44" D × 53" H

Controls & Accessories

• Controller: FQ4000 easyTouch® (standard)
• Optional Basket Lifts
• Optional Oil Quality Sensor (OQS)
• Optional KitchenConnect® capability
• Includes frypot covers, splash shield, JIB holder, filter starter kit, and adjustable casters

Installation & Clearance

• Front Clearance: 24" minimum
• Side/Rear Clearance: 6" from combustible surfaces

Available Options & Configurations

• Models: 2FQE30U, 3FQE30U, 4FQE30U
• Optional basket lifts for automation
• Optional Oil Quality Sensor (OQS)
• Optional KitchenConnect® communication system
• Optional spreader cabinet
• Bulk oil disposal and fresh-fill systems
• Oil disposal caddy (ODC35)
• Mobile JIB box accessory
