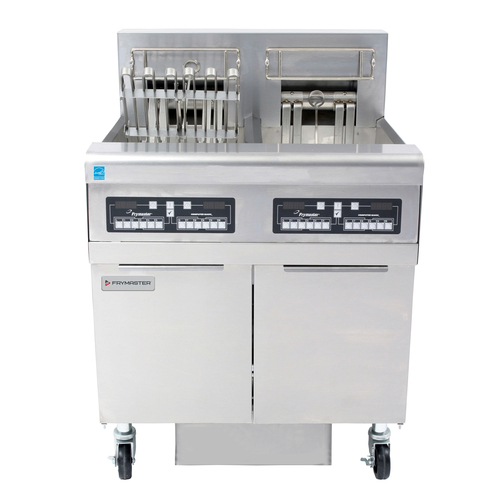

The Frymaster FPRE217 is a dual high-efficiency electric fryer battery designed for commercial kitchens that require strong frying output, precise temperature control, and integrated oil management. Each open frypot provides 50 lbs. of oil capacity with 17 kW input, using Frymaster’s proprietary self-standing, swing-up, low-watt density heating elements to deliver efficient heat transfer, long service life, and easier access for cleaning. The RTD 1° compensating temperature probe helps maintain accurate oil temperatures, reduce overshoot, and support consistent product quality during continuous frying.
The built-in filtration system is housed within the fryer battery, helping save floor space while making daily oil maintenance faster and more practical. Its large-capacity filter pan, 4 GPM pump, 1/3 H.P. filter motor, rear oil flush, deep cold zone, and stainless crumb catcher help remove sediment efficiently and extend oil life. With stainless steel frypots, doors, and cabinet construction, CM3.5 controls, melt cycle, boil-out mode, casters, and optional basket lifts or external oil discharge, the FPRE217 is well suited for QSRs, cafeterias, institutional kitchens, and high-volume restaurants focused on production consistency and lower operating costs.
Key Features
- Dual 50 lb. open-pot electric fryer battery
- Built-in filtration system with 4 GPM pump
- 17 kW input per full frypot
- Proprietary self-standing, swing-up heating elements
- ENERGY STAR® qualified high-efficiency platform
- ASTM energy efficiency rating greater than 83%
- RTD 1° compensating temperature probe
- Deep cold zone with rear oil flush
- CM3.5 controller with melt cycle and boil-out mode
- Stainless steel frypot, door, and cabinet
- Large 3" round drain and stainless crumb catcher
- Optional split frypots, SMART4U® controller, basket lifts, spreader cabinet, and external oil discharge.
Commercial Insights
The Frymaster FPRE217 is a strong fit for operators who need dual-frypot electric production with higher 17 kW performance and integrated oil filtration. Compared with standard electric fryers, it offers better oil management, faster maintenance workflow, strong energy efficiency, and more consistent temperature recovery during busy service periods. Its combination of built-in filtration, durable stainless construction, and precise controls makes it especially useful for quick-service restaurants, institutional kitchens, cafeterias, and high-volume commercial kitchens focused on productivity, oil life, and long-term operating savings.
| Section | Specification | Details |
|---|---|---|
| Capacity & Frying Area | Oil Capacity | 50 lbs. (25 L) per full frypot |
| Split Frypot Capacity | 25 lbs. (12 L) per split frypot | |
| Frying Area | 14" × 15-1/2" (35.6 × 39.4 cm) per full frypot | |
| Frypot Configuration | Dual open frypot battery | |
| Filtration Type | Built-in filtration | |
| Performance & Electrical | Power Input | 17 kW per full frypot |
| Split Frypot Power | 8.5 kW per split frypot | |
| Voltage Options | 208V, 240V, 480V domestic; 220/380V, 230/400V, 240/415V export | |
| Nominal Amps | 48A @208V, 41A @240V, 21A @480V, 26A @220/380V, 25A @230/400V, 24A @240/415V | |
| Filter Pump | 4 GPM pump with 1/3 H.P. filter motor | |
| Construction & Operation | Heating Elements | Self-standing, swing-up, flat-bar, low-watt density elements |
| Temperature Control | RTD 1° compensating temperature probe | |
| Oil Management | Deep cold zone, rear oil flush, sloped drain pan | |
| Drain Valve | 1-1/4" full-port ball-type drain valve for full frypots; 1" drain valve for split frypots | |
| Construction | Stainless steel frypot, door, and cabinet | |
| Dimensions & Shipping | Width | 31-3/8" (79.4 cm) / 31.5" (79.9 cm) |
| Depth | 31" (78.6 cm) / 32.4" (82.2 cm) | |
| Height | 45-3/8" (115.2 cm) / 45.3" (115.0 cm) | |
| Drain Height | 14" (35.6 cm) | |
| Shipping Weight | 459 lbs. (208 kg) | |
| Crated Dimensions | 38" W × 44" D × 53" H | |
| Cubic Feet | 51 | |
| Shipping Class | 85 |
- Model:
- FPRE217
- Controller:
- CM3.5
- Dimensions:
- 31.50"W x 45.40"H x 31.00"D
- Power Type:
- Electric
- Oil Capacity:
- 50 lb Per Frypot
- Fry Area:
- 14" × 15.5" × 3.70"
- Plug Type:
- Nema 15-60P
- Pot Type:
- Open Pot
- Power:
- 17kW Per Frypot
- Drain Height:
- 11.88"
- Voltage:
- 208/240/480
- Phase:
- 3
- Amps:
- 48/41/21
- Controls per Frypot:
- 1A/1A/120V 1A
- Filters per Frypot:
- 5A/4A/120V 8A
- Basket Lifts per Frypot:
- 2A/2A/120V 3A
- Warranty:
- Frypot=1st year: Parts + Labor, 2nd - 10th year: Parts Only
For complete product specifications and to download the file, please click below.
FPRE217
