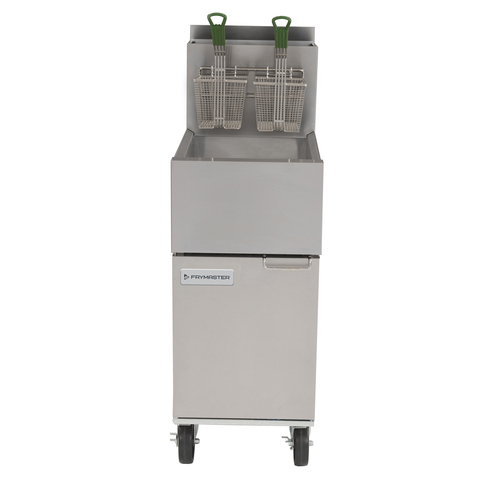

The Frymaster ESG35T is a high-efficiency commercial gas fryer designed for kitchens that prioritize energy savings, reduced oil usage, and consistent cooking performance. Featuring a 35 lb oil capacity and a deep frypot with an expanded cooking area, this fryer delivers output comparable to larger 45 lb fryers while using less oil and significantly less energy. Its ENERGY STAR® certified performance ensures lower operating costs, making it an ideal solution for cost-conscious foodservice operations.
Powered by Frymaster’s Thermo-Tube heat transfer system, the ESG35T maximizes heat transfer efficiency through increased surface area, allowing for faster recovery times and reduced heat stress on the oil. The wide cold zone design captures sediment below the cooking area, maintaining cleaner oil and improving food quality. With a millivolt control system that requires no electrical connection, durable stainless steel construction, and simplified operation, the ESG35T offers reliability, efficiency, and high performance in a compact footprint.
Key Features
- ENERGY STAR® certified high-efficiency gas fryer with approximately 52% efficiency
- 35 lb oil capacity delivering output comparable to larger 45 lb fryers
- Thermo-Tube heat transfer system with enhanced surface area for improved efficiency
- 70,000 BTU/hr input with reduced energy consumption (up to 33% savings)
- Faster recovery time (up to 2.5x compared to standard models)
- Wide cold zone to trap sediment and maintain oil quality
- Millivolt control system requiring no electrical connection
- Durable temperature probe for consistent heat control
- Combination gas valve with regulator for safe operation
- Tube-style frypot design for efficient heat distribution
- Stainless steel frypot, cabinet, and door construction for durability
- Compact footprint ideal for space-constrained kitchens
Important Specifications (Model ESG35T)
Capacity & Cooking Area
- Oil Capacity: 35 lbs (17 liters) per frypot
- Frying Area: 14" x 13.75" x 4.2"
Performance & Gas System
- Power Output: 70,000 BTU/hr per frypot
- Gas Types: Natural Gas / Propane / Mixed gas
- Gas Pressure:
- Natural Gas: 6"–14" W.C.
- Propane: 9"–14" W.C.
- Mixed Gas: 11"–14" W.C.
- Gas Connection: 3/4" NPT
Construction & System Design
- Pot Type: Tube-type frypot
- Heating System: Thermo-Tube heat transfer design
- Control System: Millivolt (no electrical connection required)
- Temperature Control: Durable temperature probe
- Material: Stainless steel frypot, door, and cabinet sides

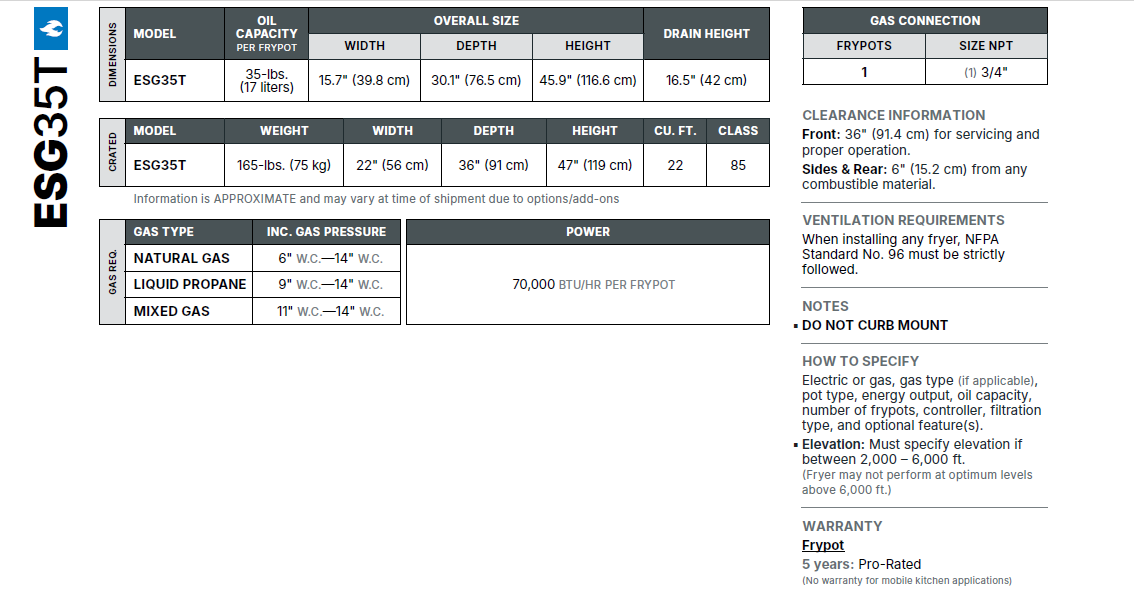

Dimensions (from page 2 table)
- Width: 15.7" (39.8 cm)
- Depth: 30.1" (76.5 cm)
- Height: 45.9" (116.6 cm)
- Drain Height: 16.5" (42 cm)
Weight & Shipping
- Unit Weight: 165 lbs (75 kg)
- Crated Dimensions: 22" W × 36" D × 47" H
Electrical Requirements
- No electrical connection required (millivolt system)
Included Accessories
- (2) Twin baskets per frypot
- Wire basket hanger
- Basket support rack
- Adjustable 6"–7" steel legs
Installation & Clearance
- Front Clearance: 36"
- Side/Rear Clearance: 6"
Available Options & Configurations
- Model: ESG35T (single frypot configuration)
- Controller: Millivolt (standard)
- Optional casters for mobility
- Designed for flexible installation in compact or standard kitchen layouts
- Model:
- ESG35T
- Controls:
- Millivolt System
- Dimensions:
- 15.5"W x 44"H x 29.13"D
- Power Type:
- Gas
- Fuel Type:
- Natural Gas/Liquid Propane
- Oil Capacity:
- 35 lb
- Fry Area:
- 14" × 13.75" × 4.2"
- Pot Type:
- Tube
- Power:
- 70,000 BTU/HR
- Gas Pressure (Natural Gas):
- 6" W.C.- 14" W.C.
- Gas Pressure (Liquid Propane):
- 9" W.C.- 14" W.C.
- Gas Connection (1 - Frypot):
- (1) - 3/4" NPT
- Warranty:
- Frypot=1st year: Parts + Labor, 2nd - 10th year: Parts Only
For complete product specifications and to download the file, please click below.
