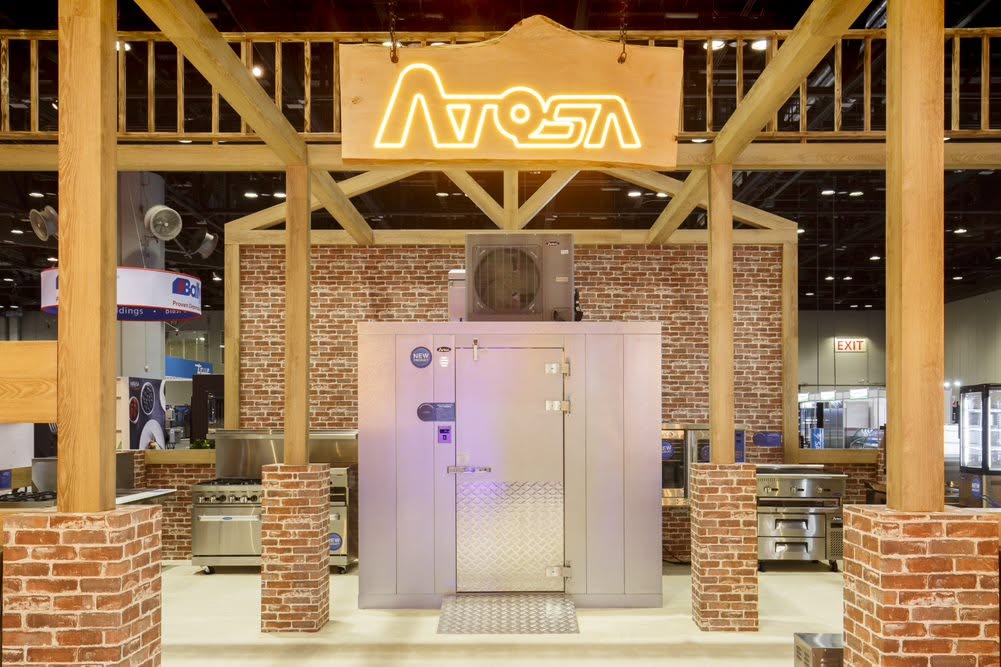

The Atosa AWF Series Walk-in Freezers provide commercial frozen storage in five nominal enclosure sizes, ranging from 6' x 8' to 10' x 12'. Each size is available in IL and IR configurations to support different installation layouts.

The series features a white exterior and interior with 4-inch-thick, foamed-in-place insulated panels connected using cam locks. The 4-inch wall and ceiling panels have a stated R-value of R-29. Indoor models include a standard floor, reinforced floor construction, and a standard interior access ramp.

A top-mounted, drop-in refrigeration system provides the cooling required for frozen storage. The system operates with R404A refrigerant and is designed for a low noise level. These walk-in freezers maintain an interior temperature range of -8°F to 0°F. With the condenser installed, the overall height is approximately 10 feet, and an 11-foot ceiling height is recommended to provide sufficient installation clearance.

The 36-inch entrance door is supported by three spring-loaded, heavy-duty Kason hinges. It also includes diamond tread kick plates, a heated frame, a heavy-duty Kason door closer, and a heavy-duty Kason handle with a lock. An inside safety release allows the door to be opened from inside the freezer.

Interior illumination includes a standard digital LED light and a standard 48-inch ceiling-mounted LED fixture. The specification sheet also provides model-specific shelving unit configurations for organizing the available interior storage space.

Standard Features

• Commercial walk-in freezer series
• White exterior
• White interior
• Stated to be 20% more efficient than any walk-in series on the market
• Available in nominal sizes from 6' x 8' through 10' x 12'
• Standard enclosure height of 7' 6"
• Standard floor included with indoor models
• 4-inch-thick, foamed-in-place insulated panels
• Cam-lock panel construction
• 4-inch-thick wall panels
• 4-inch-thick ceiling panels
• Stated R-value of R-29 for the wall and ceiling panels
• Top-mounted, drop-in refrigeration system
• Low-noise refrigeration system operation
• Uses R404A refrigerant
• Approximately 10-foot overall height with the condenser installed
• Recommended ceiling height of 11 feet
• Maintains freezer temperatures from -8°F to 0°F
• 36-inch entrance door
• Three spring-loaded, heavy-duty Kason door hinges
• Diamond tread door kick plates
• Heated door frame
• Heavy-duty Kason door closer
• Heavy-duty Kason door handle
• Locking door handle
• Inside safety release
• Standard interior access ramp
• Standard reinforced floor
• Standard digital LED light
• Standard 48-inch ceiling-mounted LED fixture
• IL and IR configurations available
• Model-specific shelving unit configurations documented for all five enclosure sizes
