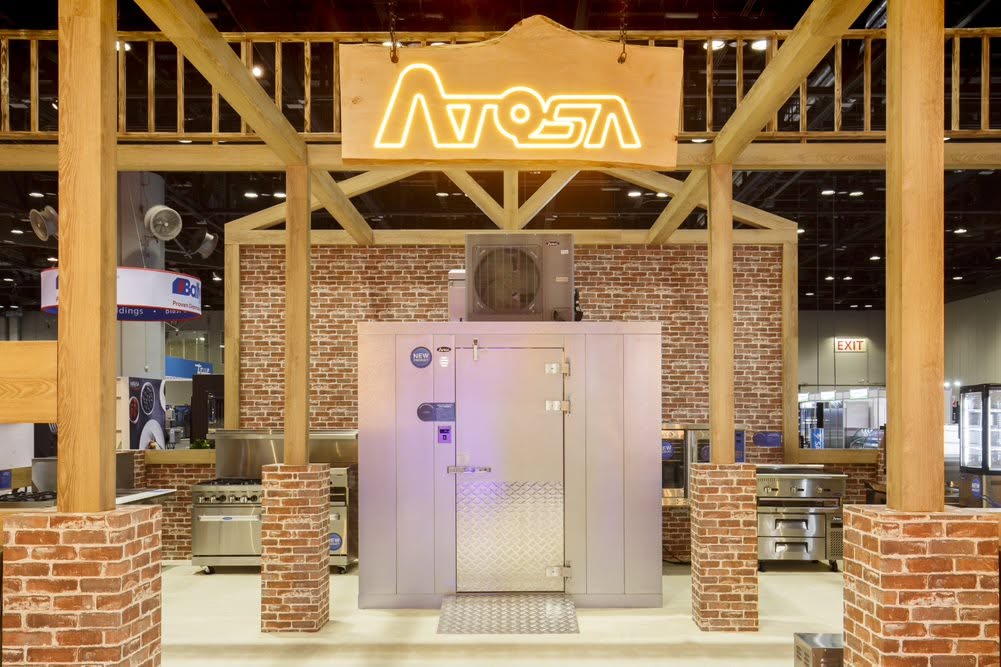

The Atosa AWF Series Walk-in Freezers provide commercial frozen storage in six nominal enclosure sizes, ranging from 6' x 6' to 10' x 12'. Each size is available in EL and ER configurations, allowing the appropriate configuration to be selected for the installation layout.
The series features a white exterior and interior with 4-inch-thick, foamed-in-place insulated panels connected using cam locks. The 4-inch wall and ceiling panels have a stated R-value of R-29. Indoor models include a standard reinforced floor, while the standard 34 1/2-inch x 27 1/2-inch exterior ramp provides convenient access into the freezer.
A top-mounted, drop-in refrigeration system simplifies the overall equipment configuration. The system operates with R404A refrigerant and is designed for a low noise level. These walk-in freezers maintain an interior temperature range of -8°F to 0°F for frozen product storage. With the condenser installed, the overall height is approximately 10 feet, and an 11-foot ceiling height is recommended.
The 36-inch entrance door is supported by three spring-loaded, heavy-duty Kason hinges. It also features diamond tread kick plates, a heated frame, a heavy-duty Kason door closer, and a heavy-duty Kason handle with a lock. An inside safety release provides a means of opening the door from inside the freezer.
Interior illumination includes a standard digital LED light and a standard 48-inch ceiling-mounted LED fixture. Each model size also has a documented shelving unit configuration designed around its available interior dimensions.
Standard Features
- Commercial walk-in freezer series
- White exterior
- White interior
- Stated to be 20% more efficient than any walk-in series on the market
- Available in nominal sizes from 6' x 6' through 10' x 12'
- Standard enclosure height of 7' 7"
- Standard floor included with indoor models
- 4-inch-thick, foamed-in-place insulated panels
- Cam-lock panel construction
- 4-inch-thick wall panels
- 4-inch-thick ceiling panels
- Stated R-value of R-29 for the wall and ceiling panels
- Top-mounted, drop-in refrigeration system
- Low-noise refrigeration system operation
- Uses R404A refrigerant
- Approximately 10-foot overall height with the condenser installed
- Recommended ceiling height of 11 feet
- Maintains freezer temperatures from -8°F to 0°F
- 36-inch entrance door
- Three spring-loaded, heavy-duty Kason door hinges
- Diamond tread door kick plates
- Heated door frame
- Heavy-duty Kason door closer
- Heavy-duty Kason door handle
- Locking door handle
- Inside safety release
- Standard exterior access ramp
- Exterior ramp measures 34 1/2 inches x 27 1/2 inches
- Standard reinforced floor
- Standard digital LED light
- Standard 48-inch ceiling-mounted LED fixture
- EL and ER configurations available
- Model-specific shelving unit configurations documented for all six enclosure sizes
- Model:
- AWF0606TF-EL/ER
- Rated Current(A):
- 12
- Voltage:
- 208~240/60/1
- Breaker:
- 30
- Power Type:
- Electric
- HP:
- 1.5
- Refrigerant:
- R404A
- Temprature:
- -8 °F – 0 °F
- Compressor Location:
- Top Mount
- Number of Doors:
- 1
- Door Type:
- Solid
