The PizzaMaster 550 Series Multi Purpose CounterTop Ovens are premium heavy-duty electric stone hearth ovens engineered for commercial pizzerias, bakeries, cafés, restaurants, and foodservice operations requiring high-capacity countertop baking. Designed with one or two independently controlled baking decks, the 550 Series combines high power output, rapid heat recovery, and baking temperatures up to 400°C (752°F) as standard. Featuring natural clay hearthstones with crisping function, digital controls, Turbo Start technology, and durable stainless steel construction, these ovens deliver exceptional baking consistency while maximizing production efficiency. Their modular, stackable design allows businesses to expand baking capacity without increasing floor space.
Features of the 550 Series
Standard Features
- Compact countertop stone hearth oven design
- Available in single-deck and double-deck configurations
- High power output for rapid heat-up and heat recovery
- Maximum baking temperature of 400°C (752°F) as standard
- Natural clay hearthstones with crisping function
- Stainless steel exterior (except exterior bottom and rear panel)
- Turbo Start heating function
- Dual halogen lighting in each deck
- Digital temperature display
- Thermostat, Turbo Start and service indicators
- Heat-reflecting glass viewing door
- Manual bake timer with shut-off alarm
- Automatic bake timer with audible alarm
- Stackable design using optional stacking kit
- Scandinavian engineered design
- International certifications available
- Two-year limited warranty
Optional Features & Accessories
Factory Options
- Marine version
- Stacking kit (required when stacking ovens)
- High Temperature Deck (500°C / 932°F)
- Available for lower or upper deck
- Not compatible with Steam System
- Steam System
- Available for lower or upper deck
- Adds approximately 100 mm (4 in.) to oven depth
- Not compatible with High Temperature Deck or ovens equipped with two stones per deck
- Phantom Black finish
- Royal Gold finish
Support Stands
- PM551-S
- PM552-S
- PM553-S
- PM554-S
Shelf Support Packages
- SP-1
- SP-2
(Shelf support packages are ordered separately and are not available for PM553 or PM554 support stands.)
| Model | Decks | Power (kW) | Available Electrical Supply |
|---|---|---|---|
| PM551ED-1 | 1 | 4.41 kW | 230V 1ph, 200V 3ph, 208V 1ph, 240V 1ph |
| PM551ED-2 | 1 | 5.59 kW | 230V 1ph, 230V 3ph, 400V 3ph+N, 200V 3ph, 208V 1ph, 208V 3ph, 240V 1ph, 240V 3ph, 480V 3ph+N, 400V 3ph, 460V 3ph |

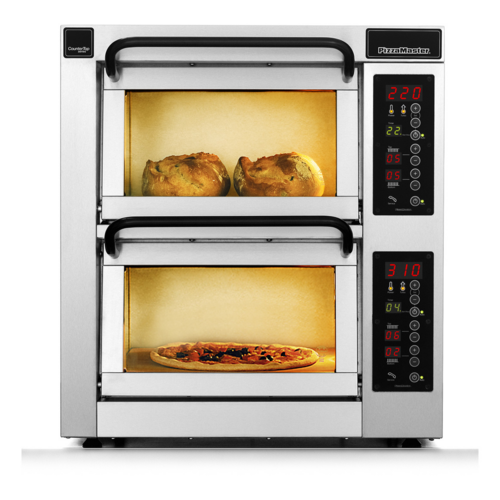

| PM552ED-2 | 2 | 8.77 kW | Same voltage options as above |

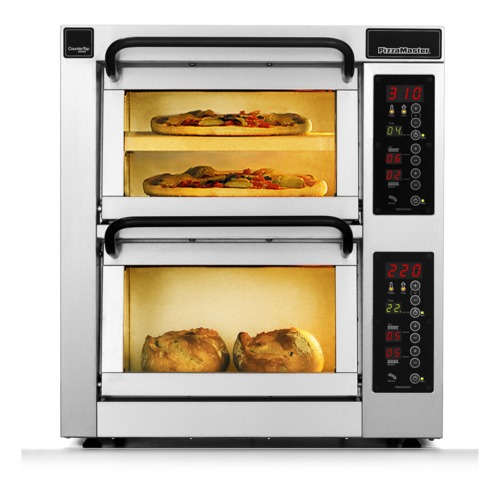

| PM552ED-3 | 2 | 10.95 kW | Same voltage options as above |

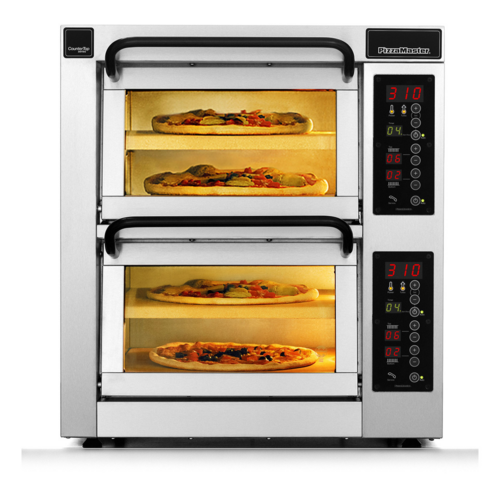

| PM552ED-4 | 2 | 13.13 kW | Same voltage options as above |
Installation & Operating Requirements
- Minimum installation clearance: 50 mm (2 in.) on all sides.
- No dedicated ventilation connection required.
- Steam system models require a G¾" / NH¾" water connection with 1–6 bar (0.1–0.6 MPa) water pressure.
- Installation, servicing, and electrical work must be performed by qualified personnel in accordance with local and national codes.
- Optional stacking supports allow ovens to be stacked for increased production while maintaining a compact footprint.
- Built for extreme temperature applications with optional stacking configurations available.
