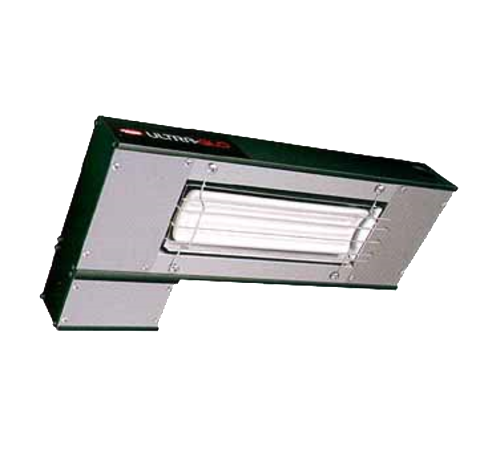

The Hatco UGAH Series Ultra-Glo® High Watt Ceramic Infrared Strip Heaters are designed to provide intensified food holding performance while preserving food quality and serving appeal. Utilizing ceramic infrared heating technology and Hatco's pre-focused heat pattern, these foodwarmers create an expanded pyramidal heat zone that distributes warmth from front-to-back and side-to-side while concentrating heat at the edges where heat loss is greatest. This design helps maintain safe serving temperatures without continuing to cook the food.
Engineered with sturdy continuous extruded aluminum housings, the UGAH series delivers dependable long-term performance while eliminating sagging over extended lengths. The elevated ceramic heat source improves operational working clearances, providing chefs and serving staff with a more ergonomic workspace. Designed for buffet lines, pass-through stations, open kitchens, and front- or back-of-house foodservice environments, these units offer flexibility for a wide range of applications.
Each unit includes adjustable angle brackets and standard 3' (914 mm) conduit leads for installation convenience. Optional designer finishes, remote control enclosures, tubular stands, display lighting upgrades, and extended power leads allow operators to customize the heater to meet specific operational and aesthetic requirements.
Key Features
- High watt ceramic infrared heating technology
- Pre-focused heat pattern creates an expanded pyramidal heat zone
- Concentrates heat at the edges where heat loss is greatest
- Maintains serving temperatures without continuing to cook food
- Increased ceramic heating element height improves working clearances
- Sturdy continuous extruded aluminum housing eliminates sagging
- Designed for front-of-house and back-of-house applications
- Suitable for buffet lines, open kitchens, pass-through stations, and serving counters
- Available in widths from 18" to 72" (457 to 1829 mm)
- Adjustable angle brackets included as standard
- Choice of attached or remote control enclosure configurations
- Standard 3' (914 mm) conduit whip with leads included
- Optional non-adjustable tubular stands available
- Optional designer color and gloss finishes available
- Ceramic heating elements guaranteed against burnout for one year.
- Model:
- UGAH-42
- Product Type:
- Ultra-Glo® Ceramic Infrared Strip Heaters
- Dimensions:
- 42"W x 10"D x 3.9"H
- Power Type:
- Electric
- Volts1:
- 120
- Volts2:
- 208
- Watts1:
- 1500
- Watts2:
- 1500
- Amps1:
- 12.5
- Amps2:
- 7.2
- Phase:
- 1
- Heating Element Type:
- Ceramic Infrared Heating Element
- Housing Material:
- Extruded Aluminum
- Standard Mounting Hardware:
- Adjustable Angle Brackets
- Heat Distribution:
- Expanded Pyramidal Heat Pattern Concentrating heat at the Edges
- Control Configuration:
- Choice of Attached or Remote Control Enclosure
- Installation Environment:
- Non-Combustible Surroundings Only
- Made in ?:
- USA
For complete product specifications and to download the file, please click below.
UGAH-XX
