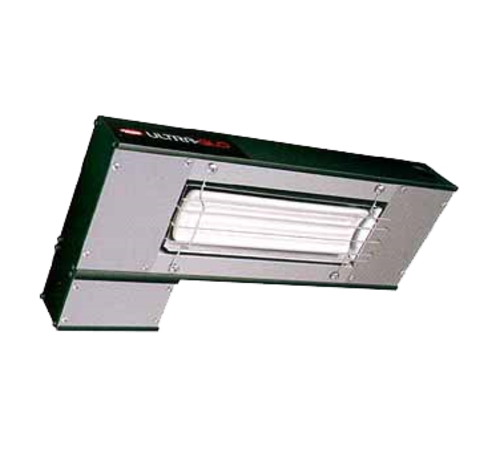

The Hatco UGA Series Ultra-Glo® Ceramic Infrared Strip Heaters are designed to deliver superior food holding performance while preserving flavor, texture, and serving quality. Featuring ceramic infrared heating technology and a pre-focused heat pattern, these foodwarmers create an expanded pyramidal heat zone that envelops the holding area from front-to-back and side-to-side. Heat is concentrated at the edges where heat loss is greatest, helping maintain consistent serving temperatures without continuing to cook the food.
Engineered with sturdy extruded aluminum housings, the UGA series provides long-lasting durability while eliminating sagging over extended lengths. The increased height of the ceramic heat source improves operational working clearances, creating a more ergonomic environment for chefs and serving staff. Suitable for front-of-house displays, buffet lines, open kitchen concepts, and back-of-house applications, these strip heaters adapt easily to a variety of foodservice configurations.
Each unit includes adjustable angle brackets for mounting and standard 3' (914 mm) conduit leads for installation flexibility. Optional designer finishes, remote control enclosures, tubular stands, extended leads, and display lighting options allow operators to customize the unit to suit their operational requirements and décor preferences.
Key Features
- Ceramic infrared heating technology for enhanced food holding performance
- Pre-focused heat pattern creates an expanded pyramidal heat zone
- Concentrates heat at the edges where heat loss is greatest
- Maintains serving temperatures without continuing to cook food
- Increased ceramic heating element height improves working clearances
- Sturdy continuous extruded aluminum housing eliminates sagging
- Suitable for front-of-house and back-of-house applications
- Adaptable for buffet lines, open kitchens, and serving stations
- Available in widths from 18" to 72" (457 to 1829 mm)
- Adjustable angle brackets included as standard
- Choice of attached or remote control enclosure configurations
- Standard 3' (914 mm) conduit whip with leads included
- Optional non-adjustable tubular stands available
- Optional designer color and gloss finishes available
- Ceramic heating elements guaranteed against burnout for one year.
- Model:
- UGA-54
- Product Type:
- Ultra-Glo® Ceramic Infrared Strip Heaters
- Dimensions:
- 54"W x 10"D x 3.9"H
- Power Type:
- Electric
- Volts:
- 208
- Watts:
- 1470
- Amps:
- 7.1
- Phase:
- 1
- Heating Element Type:
- Ceramic Infrared Heating Element
- Housing Material:
- Extruded Aluminum
- Standard Mounting Hardware:
- Adjustable Angle Brackets
- Heat Distribution:
- Expanded Pyramidal Heat Pattern Concentrating heat at the Edges
- Control Configuration:
- Choice of Attached or Remote Control Enclosure
- Installation Environment:
- Non-Combustible Surroundings Only
- Made in ?:
- USA
For complete product specifications and to download the file, please click below.
UGA-XX
