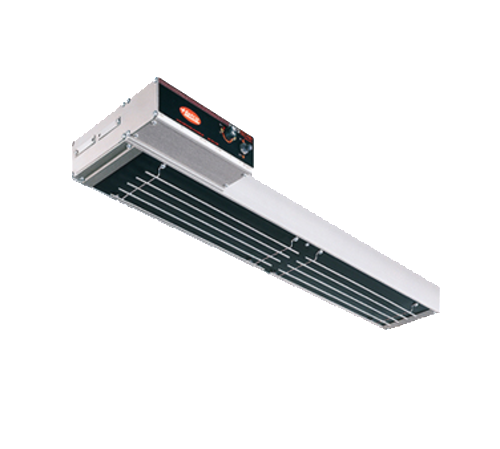

The Hatco GRAIH Series Glo-Ray® High Watt Infra-Black® Strip Heaters are engineered for close-range food warming applications where precise, uniform heat distribution is required. Utilizing Infra-Black® heat technology, these heaters emit a solid panel of controlled heat that helps maintain serving temperatures while eliminating hot spots, making them ideal for pass-through stations, serving lines, and limited-space food holding applications.
Constructed with a sturdy continuous extruded aluminum housing, the GRAIH series delivers long-lasting durability while resisting sagging over extended lengths. The high watt design combines an Infra-Black® emitter with thermostatic control capabilities to regulate heat output and provide consistent holding temperatures. Heavy-duty insulation helps keep the exterior housing cool while improving operational efficiency.
Designed for installation heights of 4" to 10" (102–254 mm) above the target surface, the GRAIH series requires either a remote control enclosure or an attached thermostatic control box. Available in multiple lengths, designer finishes, mounting configurations, and accessory options, these heaters provide a flexible solution for commercial foodservice operations requiring close-range infrared warming performance.
Key Features
- High Watt Infra-Black® strip heater for close-range food warming
- Infra-Black® emitter provides even, precise heat distribution
- Eliminates hot spots across the holding surface
- Thermostatically controlled for consistent temperature regulation
- Designed for mounting 4"–10" (102–254 mm) above target surface
- Continuous extruded aluminum housing resists sagging
- Heavy-duty insulation helps keep exterior housing cool
- Requires remote control enclosure or attached thermostatic control box
- Available in lengths from 18" to 72" (457–1829 mm)
- Tubular metal sheathed infrared heating element
- Optional element wire guard available
- Optional adjustable angle brackets and chain suspension kits
- Optional designer color and gloss finishes available
- Factory assembled and ready for electrical installation
- Suitable for pass-through and close-range food holding applications.
- Model:
- GRAIH-48
- Product Type:
- Glo-Ray® High Watt Infra-Black Strip Heaters
- Dimensions:
- 48"W x 6"D x 2.5"H
- Power Type:
- Electric
- Volts1:
- 120
- Volts2:
- 208
- Volts3:
- 240
- Watts:
- 1100
- Amps1:
- 9.2
- Amps2:
- 5.3
- Amps3:
- 4.6
- Phase:
- 1
- Number of Bulbs:
- --
- Heating Element Type:
- Tubular metal sheathed Infra-Black® Heating Element
- Heating Technology:
- nfra-Black® Heat Technology
- Temperature Control:
- Thermostatically Controlled
- Control Requirement:
- Remote Control Enclosure (RMB) or Thermostatic Control Box (TCBI)
- Made in ?:
- USA
For complete product specifications and to download the file, please click below.
GRAIH-XX
