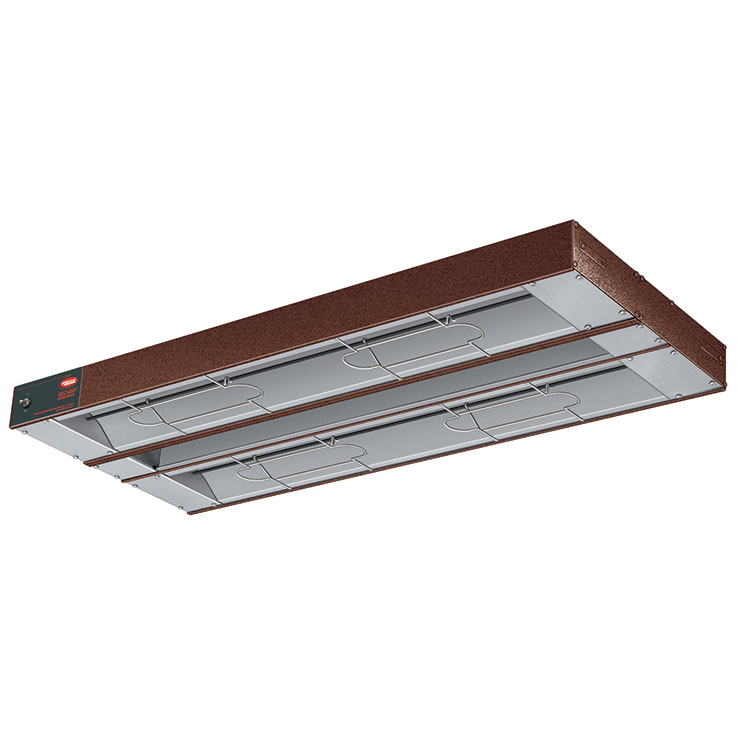

The Hatco GRAH-XXD Series Glo-Ray® Aluminum Dual Infrared Strip Heaters are designed to create a deeper hot food holding area using two high watt infrared heaters mounted side-by-side. Built for buffet lines, serving counters, pass-through stations, and commercial foodservice applications, these dual strip heaters provide expanded warming coverage while maintaining hot foods at proper serving temperatures.
Using Hatco’s pre-focused infrared heat pattern, the GRAH-XXD series distributes heat evenly across the holding surface with no cold spots. The sturdy extruded aluminum housing resists sagging, while reinforced wire guards, heavy-duty insulation, and reflectors support consistent warming performance. The series is available with either a 3" (76 mm) or 6" (152 mm) spacer between the two 6" (152 mm) heater sections for deeper holding applications.
The GRAH-XXD models offer flexible installation options with remote toggle or infinite controls, remote control enclosures, sneeze guards, tubular stands, chain suspension, and designer color or gloss finish options. These units are factory assembled for electrical installation and are suitable for commercial operations requiring higher heat output and wider holding coverage.
Key Features
- High watt dual infrared strip heater design
- Two heaters mounted side-by-side for deeper holding coverage
- Pre-focused infrared heat maintains safe serving temperatures longer
- Even heat distribution with no cold spots
- Available with 3" (76 mm) or 6" (152 mm) center spacer
- Sturdy extruded aluminum housing resists sagging
- Reinforced wire guards support operator safety without affecting heat distribution
- Heavy-duty insulation minimizes heat loss
- Reflector maintains a consistent heat pattern
- Tubular metal sheathed heating element
- Available in widths from 18" to 144" (457–3658 mm)
- Optional remote infinite switches, remote toggle switches, and RMB remote boxes
- Optional sneeze guards, tubular stands, angle brackets, and chain suspension
- Designer color and gloss finish options available
- Metal sheathed heating element guaranteed against burnout and breakage for two years.
- Model:
- GRAH-30D
- Product Type:
- Glo-Ray® Aluminum Dual Infrared Strip Heaters
- Dimensions:
- 30"W x 15"D x 2.50"H
- Power Type:
- Electric
- Volts1:
- 120
- Volts2:
- 208
- Volts3:
- 240
- Watts:
- 1320
- Amps1:
- 11.0
- Amps2:
- 6.3
- Amps3:
- 5.5
- Phase:
- 1
- Heating Element Type:
- Tubular Metal Sheathed Element
- Heating Technology:
- Pre-Focused Infrared Heat
- Heat Distribution:
- Even heat distribution with no “cold spots”
- Switch Options:
- Remote infinite switches or remote toggle switches
- Made in ?:
- USA
For complete product specifications and to download the file, please click below.
