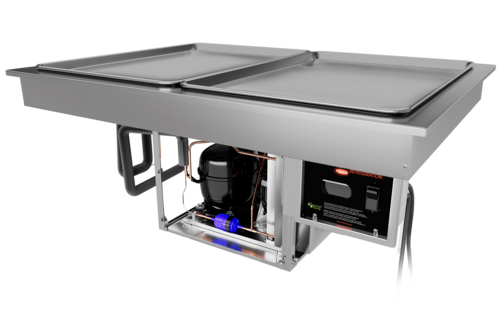

The Hatco FTBP Series R-290 Drop-In Frost Tops are designed to keep pre-chilled beverages, snacks, hors d’oeuvres, side dishes, and other cold food products properly chilled and ready for service in commercial foodservice environments. Built for buffet lines, cafeterias, restaurants, and serving counters, these refrigerated frost tops utilize environmentally friendly R-290 refrigerant and NSF 7 component approved cold wall construction to maintain product temperatures without drying out food items.
Available in standard 1-, 2-, and 3-pan models as well as slim 2- and 3-pan configurations, the FTBP series provides flexibility for various serving line layouts and space requirements. The drop-in design allows the units to be installed lengthwise for easier customer access and improved product visibility. The frost tops accommodate both full-size and half-size sheet pans, making them suitable for a wide range of chilled food applications.
Each unit features an electronic adjustable temperature control with flexible mounting options, including remote mounting up to 4' (1219 mm) from the condensing unit. Auto-defrost functionality is managed through an advanced electronic controller programmed at the customer location, while the integrated condensing system includes a compressor and filter-drier for dependable refrigeration performance.
Key Features
- Utilizes environmentally friendly R-290 refrigerant
- Available in 1-, 2-, and 3-pan standard configurations
- Available in 2- and 3-pan slim configurations
- Accommodates full-size and half-size sheet pans
- NSF 7 component approved cold wall construction
- Designed to keep food products cold without drying them out
- Auto-defrost activated through advanced electronic controller
- Electronic adjustable temperature control with flexible mounting options
- Temperature control can be remotely mounted up to 4' (1219 mm) from the unit
- Integrated condensing unit includes compressor and filter-drier
- 1" brass drain included on FTBP-2, FTBP-3, FTBP-S2, and FTBP-S3 models
- Suitable for refrigerated buffet and serving line applications.
- Model:
- FTBP-S3
- Product Type:
- Drop-In Frost Tops - Slim
- Fill Weight:
- 4.6 oz. (0.13 kg)
- Dimensions:
- 80.81"W x 21.06"D x 17.21"H
- Usable Shelf (W x D):
- 80.81"W x 21.06"D
- Power Type:
- Electric
- Volts:
- 120
- Hertz:
- 60
- Watts:
- 345
- Total Heat of Rejection (BTU/Hr):
- 1921
- Compressor Location:
- Bottom Mount
- Refrigerant:
- R-290
- Control Type:
- Mountable on either side of condensing unit or remotely mounted up to 4' (1219 mm) from unit
- Amps:
- 5.2
- Plug Type:
- Nema 5-15P
- Temperature Control:
- Electronic adjustable temperature control
- Made in?:
- USA
For complete product specifications and to download the file, please click below.
