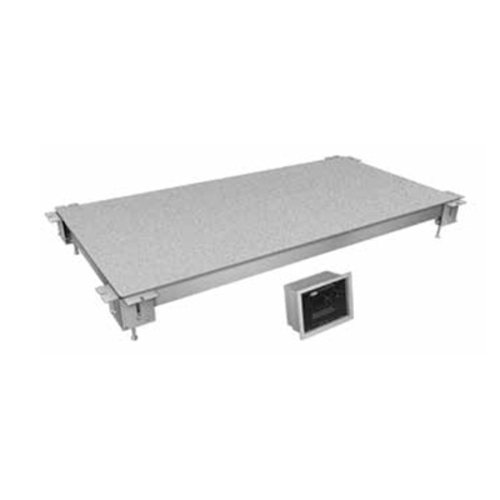

The Hatco CSSBFX Series Remote Cold Built-In Flush Top Simulated Stone Shelves are engineered to provide chilled food holding performance while maintaining a sleek, flush countertop appearance in commercial serving environments. Designed for buffet counters, cafeterias, restaurants, and custom foodservice installations, these built-in refrigerated shelves offer design flexibility for fabricators requiring integration with remote refrigeration systems supplied by others.
Constructed with durable foodsafe simulated stone surfaces, the CSSBFX series combines professional presentation with dependable operational performance. These models are supplied without a condenser, allowing operators and fabricators to integrate the shelves into custom refrigeration systems utilizing alternative refrigerants. The bottom mount flush-top configuration supports a clean, fully integrated countertop installation ideal for modern serving lines and display counters.
Each unit includes an Electronic Temperature Control Box, shelf assembly with temperature probe, unattached TXV valve, and a liquid line solenoid valve attached to the shelf. A patented thermal break system helps reduce condensation and temperature transfer to surrounding countertop surfaces, improving operational efficiency in high-volume commercial applications. Available in multiple simulated stone finishes, the CSSBFX series delivers both functional refrigeration performance and coordinated visual presentation.
Key Features
- Remote cold built-in flush top refrigerated shelf design
- Designed for use with remote refrigeration systems supplied by others
- Flush countertop installation for integrated serving line appearance
- Foodsafe simulated stone shelf surface construction
- Bottom mount configuration for seamless installation
- Patented thermal break reduces condensation and temperature transfer
- Electronic Temperature Control Box with 4' (1219 mm) lead wire included standard
- Control box can be mounted on the front of the cabinet, 4' (1219 mm) from center of shelf
- Includes shelf assembly with temperature probe and unattached TXV valve
- Liquid line solenoid valve attached to shelf
- Available in Ash Gray standard finish with optional Birch and Ice simulated stone finishes
- Designed for custom fabrication and commercial buffet applications.
- Model:
- CSSBFX-48-S
- Product Type:
- Cold Simulated Stone Built-in Shelf
- Fill Weight:
- --
- Dimensions:
- 51"W x 24"D x 7.52"H
- Usable Shelf (W x D):
- 48" x 24"
- Power Type:
- Electric
- Volts:
- 120
- Hertz:
- 60
- Watts:
- 12
- Evaporator Load BTU/Hr:
- 3009
- Compressor Location:
- --
- Refrigerant:
- (No Condenser)
- Control Type:
- Electronic Temperature Control Box with 4' (1219 mm) lead wire
- Amps:
- 0.1
- Installation:
- Flush to Countertop
- Included Components:
- Shelf assembly with temperature probe, unattached control box and unattached TXV valve
- Made in?:
- USA
For complete product specifications and to download the file, please click below.
