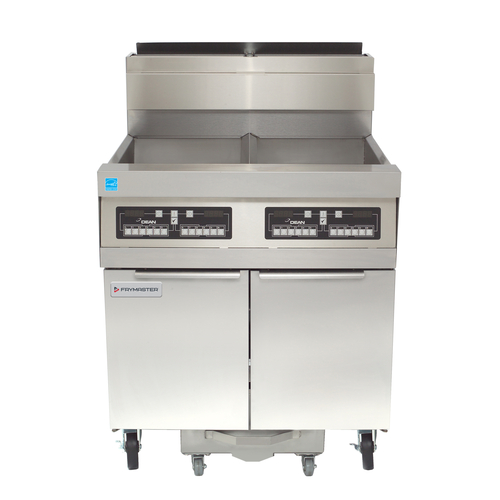

The Frymaster SCFHD250G is a dual high-efficiency gas fryer system engineered for high-volume commercial kitchens that require strong production output, energy savings, and integrated oil filtration. Each frypot provides 50 lbs of oil capacity and uses Frymaster’s Thermo-Tube heat-transfer design to improve heat transfer, reduce wasted energy, and support fast recovery during peak service. Its wide cold zone and forward-sloping frypot bottom help collect sediment away from the cooking area, preserving oil quality and simplifying routine cleaning.
Built with manual filtration, RTD temperature control, drain safety protection, and durable stainless steel construction, the SCFHD250G supports consistent frying performance while improving oil management and workflow efficiency. The system is designed for kitchens frying large volumes of fries, breaded foods, chicken, and other high-demand menu items, making it a strong fit for QSRs, chain restaurants, institutional kitchens, and other busy foodservice operations.
Key Features
- Dual 50 lb tube-type gas fryer configuration
- ENERGY STAR® certified HD50 fryer platform
- Thermo-Tube heat-transfer design with 6" diameter tubes
- Built-in manual filtration system
- Wide cold zone for sediment collection and oil preservation
- Forward-sloping frypot bottom for easier draining and cleanup
- RTD 1° compensating temperature probe
- Thermatron controller standard with CM3.5, 3010, and 3000 options
- Drain safety switch for filtration protection
- Combination gas valve with regulator
- Melt cycle and boil-out mode
- Stainless steel frypot, door, and cabinet sides
- Casters standard on filter models
- Two twin baskets per frypot.
Commercial Insights
The Frymaster SCFHD250G is well suited for operators who need dual-frypot production capacity with high-efficiency gas performance and integrated filtration. Its Thermo-Tube design supports fast recovery and lower energy use, while the built-in filtration system and wide cold zone help protect oil quality and reduce maintenance demands during high-volume frying. This model is especially practical for QSRs, chain restaurants, institutional kitchens, and busy commercial operations that need reliable throughput, cleaner oil management, and long-term operating cost control.
| Section | Specification | Details |
|---|---|---|
| Capacity & Cooking Area | Oil Capacity | 50 lbs (40 liters) per frypot |
| Frying Area | 14" × 14" × 3.75" (35 × 35 × 8.9 cm) per frypot | |
| Frypot Configuration | Dual Tube-Type Frypot | |
| Standard Baskets | (2) Twin baskets per frypot | |
| Performance & Gas Requirements | Power Output | 100,000 BTU/hr (CE - 27 kW net) per frypot |
| Gas Type | Natural Gas / Propane / Mix | |
| Gas Connection | 1" NPT | |
| Natural Gas Pressure | 6" W.C. – 14" W.C. | |
| Liquid Propane Pressure | 9" W.C. – 14" W.C. | |
| Controls Power | 1 A | |
| Filter Power | 8 A domestic / 4 A export | |
| Construction & System Design | Heating System | Thermo-Tube heat-transfer design |
| Filtration System | Built-in manual filtration | |
| Temperature Control | RTD 1° compensating temperature probe | |
| Cold Zone | Wide cold zone with forward-sloping frypot bottom | |
| Drain Valve | 1-1/4" to 1-1/2" full-port IPS ball-type drain valve | |
| Material Construction | Stainless steel frypot, door, and cabinet sides | |
| Dimensions & Shipping | Width | 31.3" (79.4 cm) |
| Depth | 34.4" (87.5 cm) | |
| Height | 46.4" (117.9 cm) | |
| Drain Height | 12.5" (31.8 cm) | |
| Shipping Weight | 677 lbs (307 kg) | |
| Crated Dimensions | 53" W × 42" D × 53" H | |
| Cubic Feet | 68 | |
| Shipping Class | 85 |
- Model:
- SCFHD250G
- Controller:
- 3000
- Controls:
- 1A (Domestic)
- Filter System:
- 8A (for Filtration Models)
- Basket Lifts:
- 3A
- Dimensions:
- 31"W x 46.38"H x 34.50"D
- Power Type:
- Gas
- Fuel Type:
- Natural Gas/Liquid Propane
- Oil Capacity:
- 50 lb per Full Frypot
- Fry Area:
- 14" × 14" × 3.75" per Full Pot
- Plug Type:
- Nema 5-15P
- Pot Type:
- Tube
- Power:
- 200,000 BTU/HR
- Gas Pressure (Natural Gas):
- 6" W.C.- 14" W.C.
- Gas Pressure (Liquid Propane):
- 9" W.C.- 14" W.C.
- Gas Connection (1 - Frypot):
- (1) - 3/4" NPT
- Gas Connection (2-4 Frypots):
- (1) - 1"
- Warranty:
- Frypot=1st year: Parts + Labor, 2nd - 10th year: Parts Only
