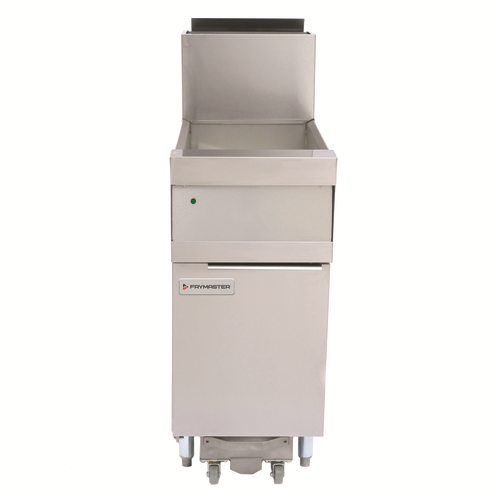

The Frymaster CFHD150G is a high-efficiency commercial gas fryer with integrated filtration, engineered for high-volume foodservice operations that require strong production performance, reduced energy consumption, and improved oil management. Built around Frymaster’s advanced Thermo-Tube heat-transfer system, the fryer utilizes enlarged 6" diameter tubes and proprietary baffle technology to maximize heat transfer into the oil while minimizing wasted heat and lowering idle operating costs. Its 50 lb frypot capacity and responsive recovery performance make it ideal for continuous production of French fries, breaded foods, chicken, and other high-demand menu items in busy commercial kitchens.
The built-in manual filtration system simplifies oil maintenance and supports longer oil life by making routine filtering faster and more convenient. A wide cold zone and forward-sloping frypot bottom help separate sediment from the cooking area to preserve oil quality and simplify cleaning. Combined with the Thermatron® temperature controller, RTD temperature sensing, electronic ignition, drain safety protection, and durable stainless steel construction, the CFHD150G delivers dependable long-term frying performance while supporting operational efficiency and lower overall operating costs.
Key Features
- 50 lb high-efficiency tube-type gas fryer with built-in filtration
- ENERGY STAR® certified fryer platform
- Thermo-Tube heat-transfer design with proprietary baffles
- Built-in manual filtration system
- 36% greater heat-transfer surface area with 6" diameter tubes
- Thermatron® temperature controller with ±1°F accuracy
- Wide cold zone for sediment collection and oil preservation
- Forward-sloping frypot bottom for faster draining and easier cleaning
- RTD 1° compensating temperature probe
- Electronic ignition system
- Melt cycle and boil-out mode
- Drain safety switch for safer filtration operation
- Stainless steel frypot, front, door, and cabinet sides
- Full-port IPS ball-type drain valve
- Casters standard on filtration models
- Two twin baskets included standard.
Commercial Insights
The Frymaster CFHD150G is designed for operators who need high-efficiency frying performance combined with integrated oil filtration and lower long-term operating costs. Its Thermo-Tube heat-transfer system improves energy efficiency and recovery speed while reducing idle gas consumption, and the built-in filtration system encourages more frequent oil filtering to help extend oil life and maintain food quality. With ENERGY STAR® certified performance, durable stainless steel construction, and simplified maintenance features, the CFHD150G is particularly well suited for QSRs, chain restaurants, institutional kitchens, and high-volume foodservice operations focused on productivity, oil management, and operational efficiency.
| Section | Specification | Details |
|---|---|---|
| Capacity & Cooking Area | Oil Capacity | 50 lbs (25 liters / 40 liters listed in revised spec) |
| Frying Area | 14" × 14" × 3.5"–3.75" (35 × 35 × 8.9 cm) | |
| Frypot Configuration | Tube-Type Frypot with Built-In Filtration | |
| Number of Tubes | 4 | |
| Performance & Gas Requirements | Power Output | 100,000 BTU/hr (29.3 kW/hr.) / CE - 27 kW net |
| Gas Type | Natural Gas / Propane / Mix | |
| Gas Connection | 3/4" NPT | |
| Natural Gas Pressure | 6" W.C. – 14" W.C. | |
| Liquid Propane Pressure | 9" W.C. – 14" W.C. | |
| Controller | Thermatron® standard | |
| Electrical Requirement | 120V / 1A controls, 120V / 8A filter | |
| Construction & System Design | Heating System | Thermo-Tube heat-transfer design |
| Filtration System | Built-in manual filtration | |
| Temperature Control | RTD 1° compensating temperature probe | |
| Cold Zone | Wide cold zone with forward-sloping frypot bottom | |
| Drain Valve | 1-1/4" full-port IPS ball-type drain valve | |
| Material Construction | Stainless steel frypot, front, door, and cabinet sides | |
| Standard Accessories | (2) Twin baskets, basket hangers, basket support racks, casters | |
| Dimensions & Shipping | Width | 32.5" (82.4 cm) |
| Depth | 32.5" (82.4 cm) | |
| Height | 46.3" (117.7 cm) | |
| Drain Height | 12.5" (31.8 cm) | |
| Shipping Weight | 354 lbs (161 kg) | |
| Crated Dimensions | 43" W × 29" D × 55" H | |
| Shipping Class | 85 |
- Model:
- CFHD150G
- Controller:
- CM3.5
- Controls:
- 1A (Domestic)
- Filter System:
- 8A (for Filtration Models)
- Basket Lifts:
- 3A
- Dimensions:
- 15.50"W x 46.38"H x 34.50"D
- Power Type:
- Gas
- Fuel Type:
- Natural Gas/Liquid Propane
- Oil Capacity:
- 50 lb per Full Frypot
- Fry Area:
- 14" × 14" × 3.75" per Full Pot
- Plug Type:
- Nema 5-15P
- Pot Type:
- Tube
- Power:
- 100,000 BTU/HR
- Gas Pressure (Natural Gas):
- 6" W.C.- 14" W.C.
- Gas Pressure (Liquid Propane):
- 9" W.C.- 14" W.C.
- Gas Connection (1 - Frypot):
- (1) - 3/4" NPT
- Gas Connection (2-4 Frypots):
- (1) - 1"
- Warranty:
- Frypot=1st year: Parts + Labor, 2nd - 10th year: Parts Only
For complete product specifications and to download the file, please click below.
CFHD150G-Specification-Sheet-1
CFHD150G-Specification-Sheet-2
CFHD150G Operation Manual
