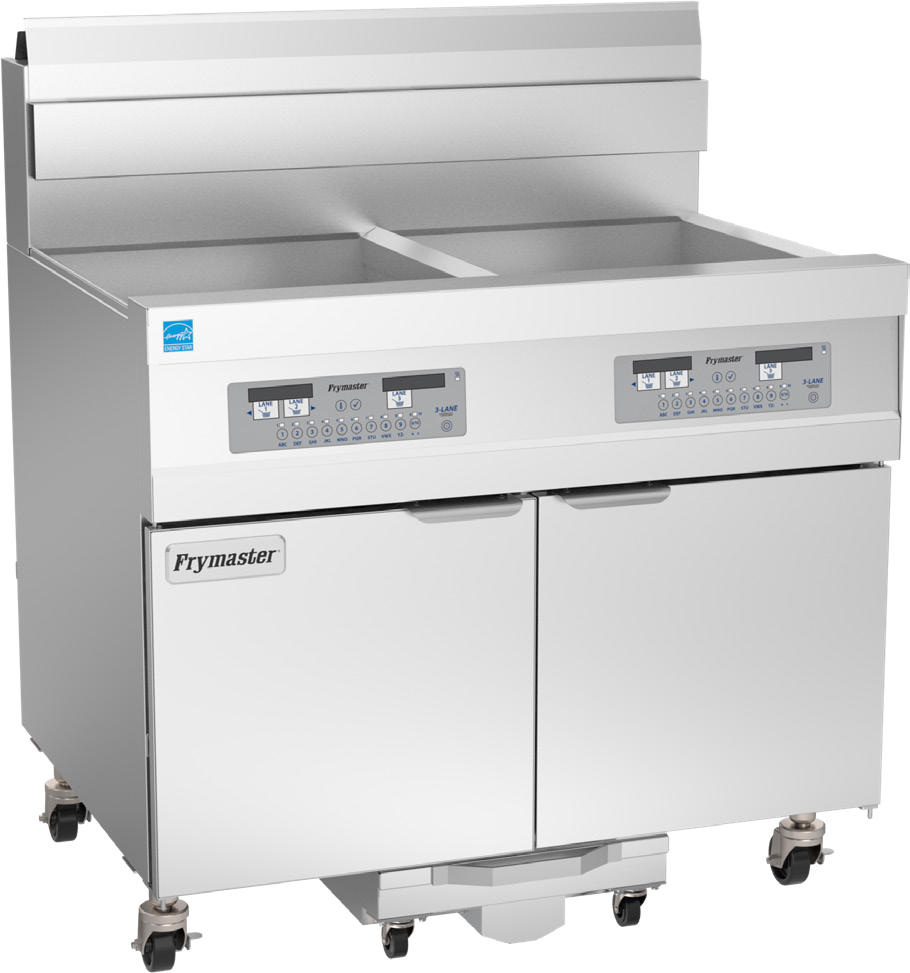

The Frymaster 21814GF is a dual frypot, high-production gas fryer system engineered for commercial kitchens that require increased capacity, efficiency, and advanced oil management. Featuring two frypots, each with a 63 lb oil capacity and an 18" x 14" cooking area, this unit delivers exceptional throughput while optimizing oil usage, energy consumption, and kitchen space. The built-in filtration system simplifies oil maintenance, extending oil life and reducing operating costs, making it ideal for high-volume foodservice operations.

Powered by Frymaster’s Thermo-Tube heat transfer system, the fryer provides superior heat distribution and faster recovery, ensuring consistent cooking performance across both frypots. The wide cold zone traps sediment away from the cooking area, preserving oil quality and enhancing food consistency. With electronic ignition, precise RTD temperature control, and durable stainless steel construction, the 21814GF is designed for reliability and efficiency. Its dual-frypot configuration allows operators to significantly increase output without expanding footprint, making it a practical solution for busy restaurants and QSR environments.

Key Features

• Dual frypot configuration for increased production capacity
• Built-in manual filtration system with 8 GPM pump for efficient oil management
• Thermo-Tube heat transfer system with enhanced surface area for improved efficiency
• 119,000 BTU/hr input per frypot (high-output performance)
• 63 lb oil capacity per frypot (126 lb total system capacity)
• Large 18" x 14" frying area per frypot, supporting three baskets each
• Wide cold zone to trap sediment and extend oil life
• RTD 1° compensating temperature probe for precise temperature control
• Electronic ignition with combination gas valve and regulator
• Tube-style frypot for consistent heat distribution
• Stainless steel frypot, cabinet, and doors for durability
• Drain safety switch for safe filtration operation
• Sloped frypot bottom for easy oil drainage and cleaning
• Compatible with controller options (Lane, Digital Timer, CM3.5, SMART4U® 3000)

Important Specifications (Model 21814GF)

Capacity & Cooking Area

• Oil Capacity: 63 lbs (31 liters) per frypot (126 lbs total)
• Frying Area: 18" x 14" x 3.75" per frypot

Performance & Gas System

• Power Output: 119,000 BTU/hr per frypot (≈238,000 BTU total)
• Gas Types: Natural Gas / Propane / Mixed gas
• Gas Pressure:
  • Natural Gas: 6"–14" W.C.
  • Propane: 9"–14" W.C.
• Gas Connection: 1" NPT (for multi-frypot systems)

Construction & System Design

• Pot Type: Tube-type frypot
• Heating System: Thermo-Tube heat transfer design
• Filtration System: Built-in manual filtration with 8 GPM pump
• Temperature Control: RTD probe (1° compensating)
• Ignition: Electronic ignition
• Material: Stainless steel frypot, door, and sides

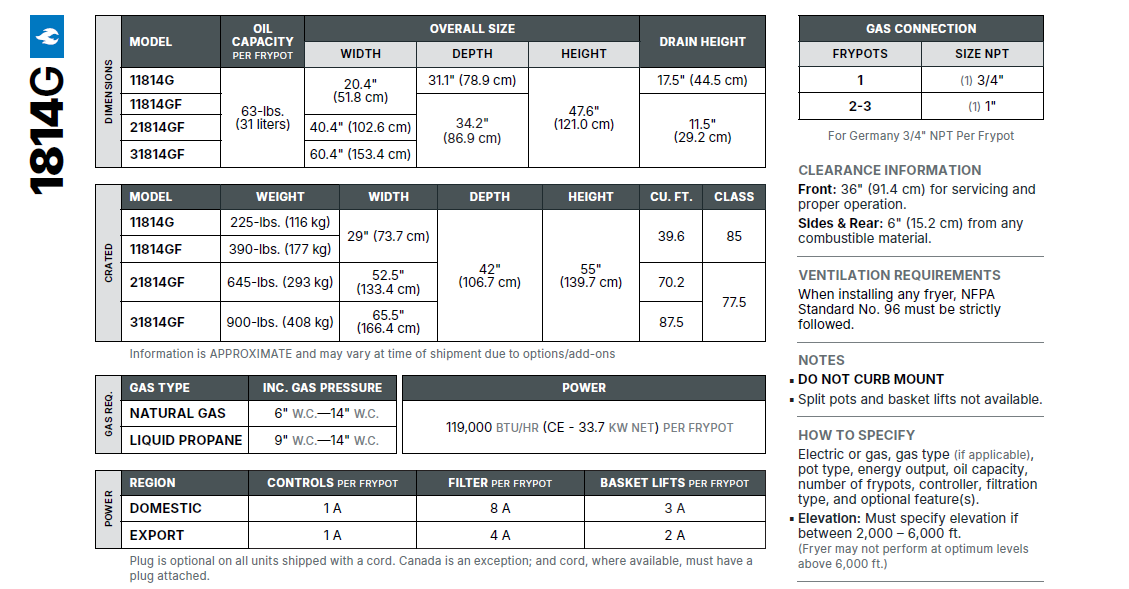

Dimensions (from tables across both files)

• Width: 40.4" (102.6 cm)
• Depth: 31.1"–33.1" (approx. 78.9–84.1 cm based on configuration)
• Height: 47.6" (121.0 cm)
• Drain Height: 11.5" (29.2 cm)

Weight & Shipping

• Unit Weight: 645 lbs (293 kg)
• Crated Dimensions: 52.5" W × 42" D × 55" H

Electrical Requirements (for controls & filtration)

• Controls: 120V / 1A
• Filtration System: 120V / 8A
• Basket Lifts: 120V / 3A

Included Accessories

• (3) Twin baskets per frypot (total 6 baskets)
• Basket hanger(s) and support rack(s)
• Filter starter kit
• Casters for mobility

Installation & Clearance

• Front Clearance: 24"–36" (depending on configuration)
• Side/Rear Clearance: 6"

Available Options & Configurations

• Models: 11814G (no filtration), 11814GF, 21814GF, 31814GF, 41814GF
• Controller Options: Lane (standard), Digital Timer, CM3.5, SMART4U® 3000
• External oil discharge (front or rear connection)
• Bulk oil system (dispose and refill)
• Spreader cabinet for additional workspace
• Optional accessories: fryer covers, splash shields, sediment trays, multiple basket types

Critical Notes from Analysis

• The 21814GF provides a strong balance between capacity and footprint, making it ideal for medium-to-high volume kitchens.
• Built-in filtration across dual frypots delivers significant oil savings and operational efficiency, especially during continuous service.
• The Thermo-Tube system enhances heat transfer while reducing oil breakdown, improving long-term cost efficiency.
• Compared to single frypot models, this unit doubles production capacity without doubling operational complexity, making it a preferred upgrade for growing kitchens.
• Best suited for QSR chains, busy restaurants, and production kitchens requiring consistent output and workflow efficiency.
