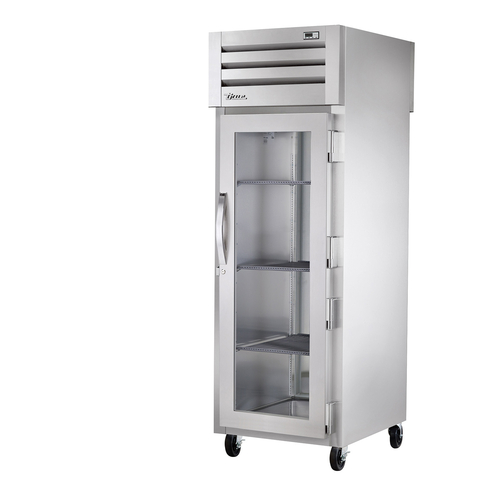

The True STG1HPT-1G-1S is a commercial pass-thru heated holding cabinet designed to streamline kitchen workflow while maintaining consistent serving temperatures for cooked and baked foods. Featuring a glass swing door on the front for product visibility and a solid stainless steel swing door on the rear for back-of-house access, this unit is ideal for high-volume foodservice operations. The cabinet utilizes an electric heating system with controlled airflow and humidity management to evenly distribute heat without drying out food. Built with durable stainless steel and aluminum construction, digital temperature control, and NSF-4 compliance, the STG1HPT-1G-1S delivers reliable hot food holding performance for restaurants, catering operations, and institutional kitchens.
Key Features
Heating & Temperature Control
- Designed to maintain holding temperatures from 140°F to 180°F (60°C to 82.2°C)
- Electric heating system controlled by exterior on/off switch and electronic temperature control
- Single stainless steel heating element providing 1500 watts of uniform heat
- Manually controlled top-mounted vent for positive humidity control
Cabinet & Construction
- Stainless steel door with matching aluminum exterior sides
- Aluminum interior side walls and back with stainless steel floor and ceiling
- Foamed-in-place high-density polyurethane insulation using Ecomate
- 5" diameter plate casters with front locks for mobility
Door Configuration & Accessibility
- Pass-thru design with glass front swing door and solid stainless steel rear swing door
- Front door features “Low-E” double-pane thermal insulated glass
- Positive seal self-closing doors with 120° stay-open feature
- Lifetime guaranteed bolt-style door locks
- Heavy-duty all-metal working door handles
- External cam-lift hinges (four per door section)
- Magnetic, removable one-piece door gaskets for easy cleaning
Operation & Compliance
- Exterior digital temperature display (°F or °C selectable)
- Incandescent interior lighting with safety shielding
- Designed for holding warm food only (not for heating ambient or cold product)
- NSF-4 compliant for open food holding
Warranty Information
- Three (3) Year Warranty on All Parts and Labor
- Warranty valid for commercial use in the U.S.A. only
- Model:
- STG1HPT-1G-1S
- Type:
- Pass-Thru Heated Holding Cabinet (Glass Front / Solid Rear)
- Exterior:
- Stainless Steel Door with Matching Aluminum Sides
- Interior:
- Aluminum Side Walls & Back, Stainless Steel Floor & Ceiling
- Number Of Doors:
- 2
- Door Type:
- Front Glass/Rear Solid
- Number Of Shelves:
- 3
- Heating Output:
- 1500 Watts
- Temperature Range:
- 140°F to 180°F (60°C to 82.2°C)
- Voltage:
- 208-240 / 60 / 1
- Plug Type:
- NEMA 6-15P
- Cord Length:
- 9 ft (2.74 m)
- Casters:
- 5" Diameter, Front Locking
- Dimensions(WxHxD):
- 27.5"x77.75"x36.13"
- Certifications:
- cULus, UL-EPH
- Origin Country:
- Made in the U.S.A
For complete product specifications and to download the file, please click below.
