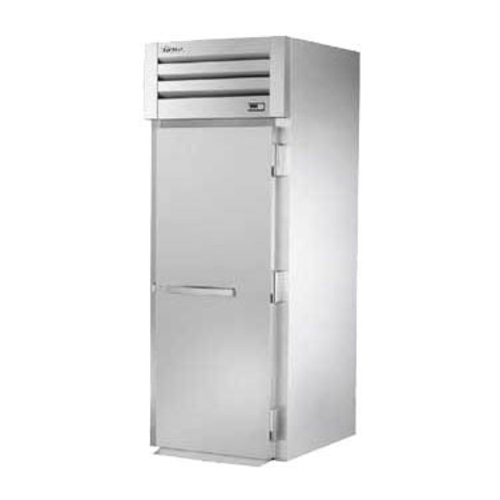

The True STG1FRI-1S-HC is a heavy-duty commercial roll-in freezer engineered for high-volume foodservice operations requiring convenient rack-based storage and dependable frozen holding performance. Built with a stainless steel door and matching aluminum exterior sides, this unit provides durability and corrosion resistance for demanding kitchen environments. Designed to accommodate roll-in racks, the freezer improves workflow efficiency and reduces product handling. The advanced self-contained refrigeration system maintains consistent sub-zero temperatures suitable for frozen foods and ice cream storage, while the top-mounted refrigeration system maximizes interior storage capacity. Featuring durable cabinet construction, protective interior bumpers, and efficient airflow design, this freezer delivers reliable long-term performance for restaurants, bakeries, and institutional kitchens.
Key Features
Construction & Cabinet Design
- Stainless steel door with matching aluminum exterior sides
- Aluminum interior side walls and back with stainless steel floor and ceiling
- High-density foamed-in-place polyurethane insulation
- Heavy gauge stainless steel ramp included
- Interior bumpers protect cabinet walls from roll-in cart damage
- Designed to accept roll-in racks (maximum 27"L x 29"D x 66"H)
Door & Accessibility
- Solid swing door design
- Positive seal self-closing door with 120° stay-open feature
- Lifetime guaranteed bolt-style door lock
- Heavy-duty all-metal working door handle
- External cam-lift hinges (three per door section)
- Magnetic removable door gasket for easy cleaning
Refrigeration & Performance
- Factory engineered, self-contained capillary tube refrigeration system
- Uses environmentally friendly CFC-free R404A refrigerant
- Maintains operating temperature of -10°F (-23.3°C)
- Extra-large evaporator coil paired with higher horsepower compressor
- Sealed cast iron, self-lubricating evaporator fan motors with large fan blades
- Low velocity, high volume airflow for faster temperature recovery
- Top-mounted refrigeration system positioned outside food zone
- Automatic defrost system with temperature termination
- Epoxy-coated evaporator to reduce corrosion potential
Operation & Convenience
- Exterior digital temperature display (°F or °C selectable)
- Incandescent interior lighting with safety shielding
- Fully pre-wired unit with cord and plug included
- NSF/ANSI Standard 7 compliant for open food storage
Warranty Information
- Three (3) Year Warranty on all Parts and Labor
- Additional Two (2) Year Warranty on Compressor
- Applies to commercial installations in the U.S.A. only
- Model:
- STG1FRI-1S-HC
- Type:
- Roll-In Solid Swing Door Freezer
- Exterior:
- Stainless Steel Door with Matching Aluminum Sides
- Interior:
- Aluminum Side Walls & Back, Stainless Steel Floor & Ceiling
- Rack Capacity:
- Accepts roll-in racks up to 27"L x 29"D x 66"H
- Number Of Doors:
- 1
- Door Type:
- Solid
- Hinge Configuration:
- Right
- Compressor Location:
- Top Mount
- Special Features:
- Casters Included - Uninstalled
- HP:
- 3/4
- Amps:
- 12
- Voltage:
- 115/60/1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Freezer Temprature Range:
- -10°F (-23.3°C)
- Refrigerant:
- R404A (CFC-free)
- Dimensions (WxHxD):
- 35"x83.75"x34.75"
- Ramp:
- Heavy Gauge Stainless Steel Ramp Included
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
For complete product specifications and to download the file, please click below.
