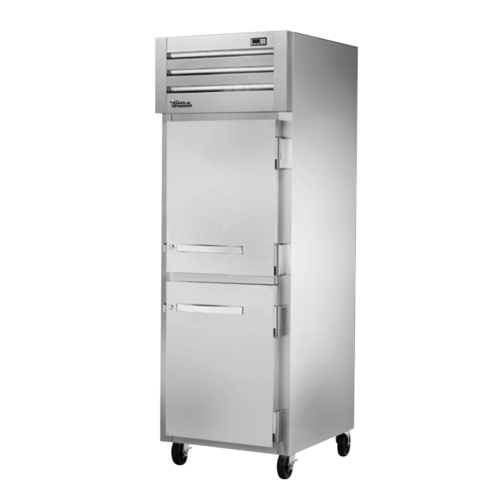

The True STG1F-2HS-HC is a high-efficiency commercial reach-in freezer designed to deliver dependable frozen storage for foodservice operations. Engineered with a stainless steel door and front combined with matching aluminum sides, this unit provides durability, corrosion resistance, and a professional appearance suited for demanding kitchen environments. The freezer utilizes an advanced self-contained refrigeration system powered by environmentally friendly R290 hydrocarbon refrigerant to maintain consistent sub-zero temperatures ideal for frozen food and ice cream storage. With durable shelving, LED interior lighting, and a top-mounted refrigeration system that maximizes storage capacity, this model ensures reliable performance, energy efficiency, and ease of operation for restaurants, cafeterias, and commercial kitchens.
Key Features
Construction & Cabinet Design
- Stainless steel door and front with matching aluminum sides
- Aluminum interior side walls and back with stainless steel floor and ceiling
- Foamed-in-place high-density polyurethane insulation using Ecomate
- 5” plate casters with front locking mechanism for mobility
Door & Accessibility
- Solid half swing doors with positive seal self-closing design
- 120° stay-open door feature for convenient loading
- Lifetime guaranteed bolt-style door locks
- Heavy-duty all-metal working door handles
- External cam-lift hinges (4 per door section)
- Magnetic removable door gaskets for easy cleaning
Refrigeration & Performance
- Factory engineered, self-contained capillary tube refrigeration system
- Environmentally friendly R290 hydrocarbon refrigerant
- Maintains operating temperature of -10°F (-23.3°C)
- Top-mounted refrigeration system positioned outside food zone
- Electronically commutated evaporator and condenser fan motors
- Automatic defrost system with temperature termination
- Epoxy-coated evaporator to reduce corrosion risk
Storage & Organization
- Includes (3) heavy-duty PVC coated wire shelves per section
- Adjustable shelving options available for multiple tray configurations
Operation & Convenience
- Exterior digital temperature display (°F or °C selectable)
- LED interior lighting with safety shielding
- Fully pre-wired for quick installation with cord and plug included
- NSF/ANSI Standard 7 compliant for open food storage
Warranty
- 3-Year Parts & Labor Warranty
- 7-Year Compressor Warranty
- Applicable in U.S.A. and Canada
- Model:
- STG1F-2HS-HC
- Type:
- Reach-In Solid Half Swing Door Freezer
- Exterior:
- Stainless Steel Door with Matching Aluminum Sides
- Interior:
- Aluminum Side Walls and Back – Stainless Steel Floor and Ceiling
- Number Of Doors:
- 2
- Door Type:
- Solid
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 3
- HP:
- 1/2
- Amps:
- 6
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Freezer Temprature Range:
- -10°F (-23.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 27.5"x77.75"x33.75"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
