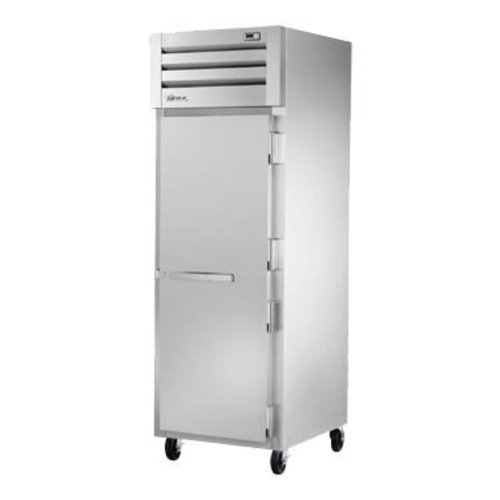

The True STG1F-1S-HC reach-in freezer is built for commercial foodservice operations that require dependable frozen storage in a compact footprint. Designed to maintain consistent cabinet temperatures of -10°F (-23.3°C), this unit is ideal for frozen foods and ice cream storage. It features a solid stainless steel swing door for superior insulation and durability, combined with a top-mounted, self-contained refrigeration system. Constructed with a stainless steel door and front with matching aluminum sides, aluminum interior side walls and back, and a stainless steel floor and ceiling, this freezer delivers long-term reliability, sanitation, and energy-efficient performance.

Key Features

Refrigeration System

• Factory engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and global warming potential of 3
• High capacity, factory balanced refrigeration system maintains -10°F (-23.3°C) cabinet temperatures, ideal for frozen foods and ice cream
• State-of-the-art electronically commutated evaporator and condenser fan motors for higher efficiency, consistent airflow, reduced heat generation, and improved motor reliability
• Top mounted refrigeration system with evaporator positioned out of the food zone to maximize storage capacity
• Automatic defrost system, time-initiated and temperature-terminated
• Automatic evaporator fan motor delay during defrost cycle

Cabinet Construction

• Entire cabinet structure and solid door foamed-in-place using Ecomate high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential
• 5 in (127 mm) diameter plate castors with locks provided on front set

Door System

• Solid stainless steel swing door
• Lifetime guaranteed bolt-style door lock
• Lifetime guaranteed heavy-duty all-metal working door handle
• Positive seal self-closing door with 120-degree stay-open feature
• Lifetime guaranteed external cam-lift door hinges, four per door section
• Magnetic door gaskets of one-piece construction, removable without tools

Lighting

• LED interior lighting, safety shielded

Model Features and Compliance

• Exterior digital temperature display, available in °F or °C
• Evaporator epoxy coated to eliminate the potential of corrosion
• Curb mounting ready
• NSF/ANSI Standard 7 compliant for open food product

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115V / 60Hz / single-phase, 15-amp dedicated outlet
• Cord and plug set included

Warranty

• Three-year warranty on all parts and labor
• Additional two-year compressor warranty (USA only)
