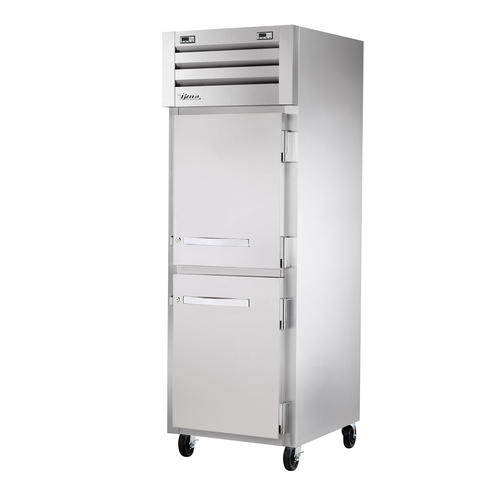

The True STG1DTA-2HS-HC dual temperature reach-in alternative refrigerator/freezer is designed for commercial kitchens that require both refrigerated and frozen storage within a single footprint. The top section operates as a refrigerator maintaining temperatures between 33°F and 38°F, while the bottom section functions as a freezer holding -10°F. This model features two solid half-height swing doors that reduce cold air loss and support efficient access. Built with a stainless steel door and matching aluminum sides, aluminum interior side walls and back with a stainless steel floor and ceiling, and powered by independent R290 hydrocarbon refrigeration systems, this unit delivers dependable performance, energy efficiency, and long-term durability.
Key Features
Refrigeration System
- Equipped with two independent, factory engineered, self-contained capillary tube refrigeration systems using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and global warming potential of 3
- Refrigerator section located on top and freezer section on bottom
- High capacity, factory balanced refrigeration system maintains 33°F to 38°F (.5°C to 3.3°C) in the refrigerator and -10°F (-23.3°C) in the freezer
- State-of-the-art electronically commutated evaporator and condenser fan motors for higher efficiency, consistent airflow, reduced heat generation, and improved motor reliability
- Top mounted refrigeration system with evaporator positioned out of the food zone to maximize capacity
- Freezer features automatic defrost system, time-initiated and time-terminated
- Automatic evaporator fan motor delay during defrost cycle
Cabinet Construction
- Entire cabinet structure and solid doors foamed-in-place using high density polyurethane insulation with zero ozone depletion potential and zero global warming potential
- 5 in (127 mm) diameter plate casters with locks provided on front set
Door System
- Two solid half-height swing doors
- Lifetime guaranteed bolt-style door locks
- Lifetime guaranteed heavy-duty all-metal working door handles
- Positive seal self-closing doors with 120-degree stay-open feature
- Lifetime guaranteed external cam-lift door hinges, four per door section
- Magnetic door gaskets of one-piece construction, removable without tools
Lighting
-
LED interior lighting, safety shielded
Model Features and Compliance
- Two exterior digital temperature displays, one for refrigerator section and one for freezer
- Evaporator epoxy coated to eliminate the potential of corrosion
- Curb mounting ready
- NSF/ANSI Standard 7 compliant for open food product
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115V / 60Hz / single-phase, 15-amp dedicated outlet
- Cord and plug set included
Warranty
- Three-year warranty on all parts and labor
- Additional two-year compressor warranty (USA only)
- Model:
- STG1DTA-2HS-HC
- Type:
- Dual Temperature Reach-In Refrigerator/Freezer
- Exterior:
- Stainless Steel Door with Matching Aluminum Sides
- Interior:
- Aluminum Side Walls and Back - Stainless Steel Floor and ceiling
- Number Of Doors:
- 2
- Door Type:
- Solid
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 3
- Refrigerator Compressor:
- 1/10 HP
- Freezer Compressor:
- 1/4 HP
- Amps:
- 3.7
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Refrigerator Temprature Range:
- 33°F to 38°F (0.5°C to 3.3°C)
- Freezer Temprature Range:
- -10°F (-23.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 27.5"x77.75"x33.75"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- ENERGY STAR, cULus, UL-EPH
For complete product specifications and to download the file, please click below.
