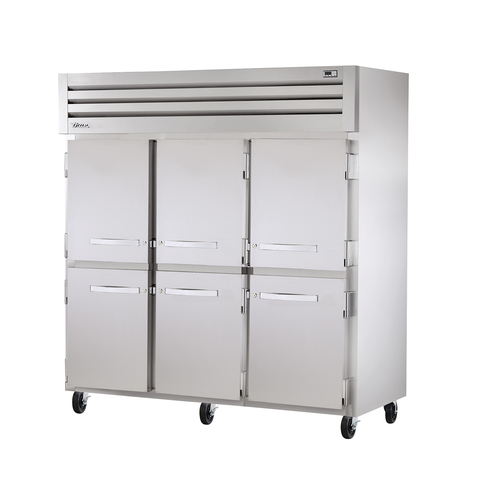

The True STA3R-6HS-HC reach-in refrigerator is designed for high-volume commercial kitchens requiring maximum storage flexibility and rapid access. This three-section unit maintains cabinet temperatures between 33°F and 38°F to ensure reliable food preservation. Featuring six solid half swing doors, it minimizes cold air loss while supporting frequent access in demanding foodservice environments. Built with a stainless steel exterior and aluminum interior side walls and back with a stainless steel floor and ceiling, and powered by an environmentally friendly R290 hydrocarbon refrigeration system, this refrigerator delivers energy efficiency, durability, and long-term performance.
Key Features
Refrigeration System
- Factory engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and global warming potential of 3
- High capacity, factory balanced refrigeration system maintains cabinet temperatures of 33°F to 38°F (0.5°C to 3.3°C) for optimal food preservation
- State-of-the-art electronically commutated evaporator and condenser fan motors provide consistent airflow, reduced heat generation, and improved energy efficiency
- Top mounted refrigeration system with evaporator positioned out of the food zone to maximize usable capacity
- Electronic temperature control
Cabinet Construction
- Entire cabinet structure and solid doors foamed-in-place using high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential
- 5 in (127 mm) diameter plate casters with locks provided on front set
Door System
- Six solid stainless steel half swing doors
- Lifetime guaranteed bolt-style door locks
- Lifetime guaranteed heavy-duty all-metal working door handles
- Positive seal self-closing doors with 120-degree stay-open feature
- Lifetime guaranteed external cam-lift door hinges, four per door section
- Magnetic door gaskets of one-piece construction, removable without tools
Lighting
-
LED interior lighting, safety shielded
Model Features and Compliance
- Exterior digital temperature display available in °F or °C
- Evaporator epoxy coated to eliminate the potential of corrosion
- Curb mounting ready
- NSF/ANSI Standard 7 compliant for open food product
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115V / 60Hz / single-phase, 15-amp dedicated outlet
- Cord and plug set included
Warranty
- Three-year warranty on all parts and labor
- Additional two-year compressor warranty (USA only)
- Model:
- STA3R-6HS-HC
- Type:
- Reach-In Solid Swing Door Refrigerator
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Number Of Sections:
- 3
- Number Of Doors:
- 6
- Door Type:
- Solid
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 9
- HP:
- 1/4
- Amps:
- 6.1
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Temprature Range:
- 33°F to 38°F (0.5°C to 3.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 77.75"x77.75"x33.75"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH, ENERGY STAR
