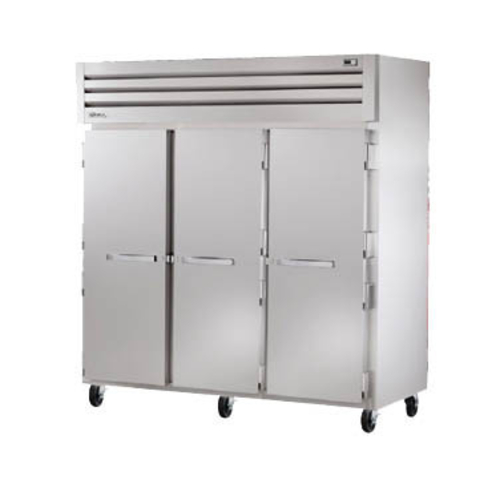

The True STA3F-3S-HC reach-in freezer is engineered for high-capacity frozen storage in demanding commercial foodservice environments. Designed to maintain consistent cabinet temperatures of -10°F (-23.3°C), this unit is ideal for frozen foods and ice cream storage. The three-section cabinet features solid stainless steel swing doors for durability and insulation, combined with a top-mounted, self-contained refrigeration system. Constructed with a stainless steel exterior and aluminum interior side walls and back with a stainless steel floor and ceiling, and powered by an environmentally friendly R290 hydrocarbon refrigeration system, this freezer delivers dependable performance, energy efficiency, and long-term reliability.

Key Features

Refrigeration System

• Factory engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and global warming potential of 3
• High capacity, factory balanced refrigeration system maintains -10°F (-23.3°C) cabinet temperatures for frozen food and ice cream storage
• State-of-the-art electronically commutated evaporator and condenser fan motors for higher efficiency, consistent airflow, reduced heat generation, and lower energy consumption
• Top mounted refrigeration system with evaporator positioned out of the food zone
• Automatic defrost system, time-initiated and temperature-terminated
• Automatic evaporator fan motor delay during defrost cycle

Cabinet Construction

• Entire cabinet structure and solid doors foamed-in-place using high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential
• 5 in (127 mm) diameter plate casters with locks provided on front set

Door System

• Solid stainless steel swing doors
• Lifetime guaranteed bolt-style door locks
• Lifetime guaranteed heavy-duty all-metal working door handles
• Positive seal self-closing doors with 120-degree stay-open feature
• Lifetime guaranteed external cam-lift door hinges, four per door section
• Magnetic door gaskets of one-piece construction, removable without tools

Lighting

• LED interior lighting, safety shielded

Model Features and Compliance

• Exterior digital temperature display available in °F or °C
• Evaporator epoxy coated to eliminate the potential of corrosion
• Curb mounting ready
• NSF/ANSI Standard 7 compliant for open food product

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115V / 60Hz / single-phase, 20-amp dedicated outlet
• Cord and plug set included

Warranty

• Three-year warranty on all parts and labor
• Additional two-year compressor warranty (USA only)
