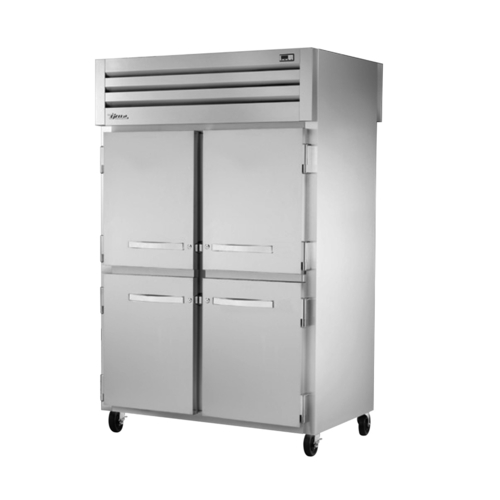

The True STA2RPT-4HS-2S-HC pass-thru refrigerator is designed to support efficient front-to-back workflow between kitchen prep and service areas while delivering dependable cold storage performance. The cabinet maintains temperatures between 33°F and 38°F, ensuring consistent food preservation in demanding commercial environments. This model features four half-height solid stainless steel swing doors on the front to reduce cold air loss in high-traffic prep areas, paired with two full-height solid stainless steel swing doors on the rear for durability and insulation on the service side. Constructed with a stainless steel exterior and aluminum interior side walls and back with a stainless steel floor and ceiling, and powered by an environmentally friendly R290 hydrocarbon refrigeration system, this unit offers long-term reliability, sanitation, and performance.

Key Features

Refrigeration System

• Factory engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and global warming potential of 3
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (0.5°C to 3.3°C) for optimal food preservation
• State-of-the-art electronically commutated evaporator and condenser fan motors for higher efficiency, consistent airflow, reduced heat generation, and lower energy consumption
• Top mounted refrigeration system with evaporator positioned out of the food zone to maximize usable storage capacity
• Electronic temperature control

Cabinet Construction

• Entire cabinet structure and solid doors foamed-in-place using Ecomate high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential
• 5 in (127 mm) diameter plate casters with locks provided on front set

Door System - Pass-Thru Configuration

• Four half-height solid stainless steel swing doors on the front
• Two full-height solid stainless steel swing doors on the rear
• Lifetime guaranteed bolt-style door locks standard
• Lifetime guaranteed heavy-duty all-metal working door handles
• Positive seal self-closing doors with 120-degree stay-open feature
• Lifetime guaranteed external cam-lift door hinges, four per door section
• Magnetic door gaskets of one-piece construction, removable without tools

Lighting

• LED interior lighting, safety shielded

Model Features and Compliance

• Exterior digital temperature display available in °F or °C
• Evaporator epoxy coated to eliminate the potential of corrosion
• Curb mounting ready
• NSF/ANSI Standard 7 compliant for open food product

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115V / 60Hz / single-phase, 15-amp dedicated outlet
• Cord and plug set included

Warranty

• Three-year warranty on all parts and labor
• Additional two-year compressor warranty (USA only)
