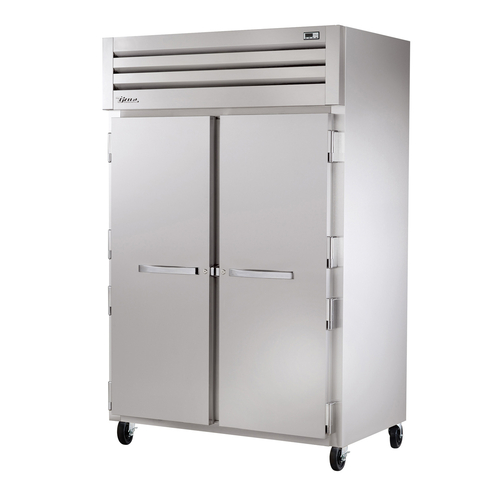

The True STA2R-2S-HC reach-in refrigerator is built for reliable cold storage in demanding commercial foodservice environments. Designed to maintain cabinet temperatures between 33°F and 38°F, it provides consistent cooling for optimal food preservation. The unit operates with a factory-engineered, self-contained refrigeration system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and ultra-low global warming potential. Featuring a stainless steel exterior and aluminum interior side walls and back with stainless steel floor and ceiling, this refrigerator delivers durability, sanitation, and dependable performance for busy kitchens and prep areas.
Key Features
Refrigeration System
- Factory engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and global warming potential of 3
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F (0.5°C to 3.3°C) for optimal food preservation
- State-of-the-art electronically commutated evaporator and condenser fan motors for higher efficiency, consistent airflow, reduced heat generation, and lower energy consumption
- Top mounted refrigeration system with evaporator positioned out of the food zone to maximize usable storage capacity
- Electronic temperature control
Cabinet Construction
- Entire cabinet structure and solid doors foamed-in-place using Ecomate high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential
- 5 in (127 mm) diameter plate casters with locks provided on front set
Door System
- Solid stainless steel swing doors
- Lifetime guaranteed bolt-style door locks standard
- Lifetime guaranteed heavy-duty all-metal working door handles
- Positive seal self-closing doors with 120-degree stay-open feature
- Lifetime guaranteed external cam-lift door hinges, four per door section
- Magnetic door gaskets of one-piece construction, removable without tools
Lighting
-
LED interior lighting, safety shielded
Model Features and Compliance
- Exterior digital temperature display available in °F or °C
- Evaporator epoxy coated to eliminate the potential of corrosion
- Curb mounting ready
- NSF/ANSI Standard 7 compliant for open food product
Electrical
- Unit completely pre-wired at factory and ready for final connection to a 115V / 60Hz / single-phase, 15-amp dedicated outlet
- Cord and plug set included
Warranty
- Three-year warranty on all parts and labor
- Additional two-year compressor warranty (USA only)

- Model:
- STA2R-2S-HC
- Type:
- Reach-In Solid Swing Door Refrigerator
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Number Of Sections:
- 2
- Number Of Doors:
- 2
- Door Type:
- Solid
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 6
- HP:
- 1/2
- Amps:
- 5.9
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Temprature Range:
- 33°F to 38°F (0.5°C to 3.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 52.63"x77.75"x33.75"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
