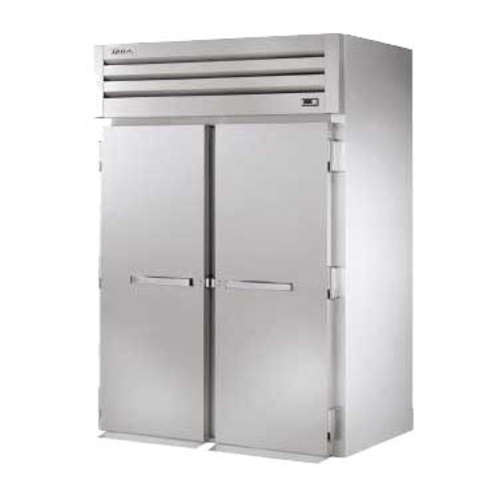

The True STA2HRT-2S-2S roll-thru heated holding cabinet is designed for continuous front-to-back access to roll-in racks while maintaining safe serving temperatures for cooked and baked foods. The cabinet provides holding temperatures from 140°F to 180°F and is not intended to heat ambient or cold products. Solid stainless steel swing doors on both the front and rear support high-volume kitchen workflows while helping retain heat. Built with a stainless steel exterior and aluminum interior side walls and back with stainless steel floor and ceiling, this unit delivers durability, sanitation, and consistent heat distribution for demanding commercial foodservice environments.

Key Features

Heater System

• Cabinet designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C)
• Heating system controlled by exterior on/off switch and electronic temperature control
• Two stainless steel, finned tube heating elements per section (1000 watts each) for uniform electric heat generation
• Total heating capacity of 4000 watts
• Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet; fans controlled by exterior on/off switch
• Manually controlled vent located on top of the cabinet for positive humidity control

Cabinet Construction

• Stainless steel breaker caps
• Entire cabinet structure and solid doors foamed-in-place using high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential
• One heavy-gauge stainless steel ramp per door
• Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27 in L x 29 in D x 66 in H (686 mm x 737 mm x 1677 mm)

Door System - Roll-Thru Configuration

• Solid stainless steel swing doors on both front and rear
• Lifetime guaranteed bolt-style door locks standard
• Lifetime guaranteed heavy-duty all-metal working door handles
• Positive seal self-closing doors with 120-degree stay-open feature
• Lifetime guaranteed external cam-lift door hinges, three per door section
• Magnetic door gasket of one-piece construction, removable without tools

Lighting

• Incandescent interior lighting, safety shielded and activated by exterior on/off switch

Model Features and Compliance

• Exterior color-coded temperature display for accurate direct reading of internal cabinet temperature
• Designed to hold warm baked or cooked food; cabinet is not designed to heat ambient or cold product
• Interior bumpers protect cabinet walls from abuse caused by roll-in carts
• 12 in x 20 in (305 mm x 508 mm) water pan included when additional humidity is required
• NSF-4 compliant for open food product

Electrical

• True requires a dedicated sole-use circuit
• Unit completely pre-wired at factory and ready for final connection to 115/208–240V / 60Hz / single-phase, 20-amp dedicated outlet
• Cord and plug set included (NEMA 14-20P)

Warranty

• Three-year warranty on all parts and labor
• Additional two-year compressor warranty (USA only)
