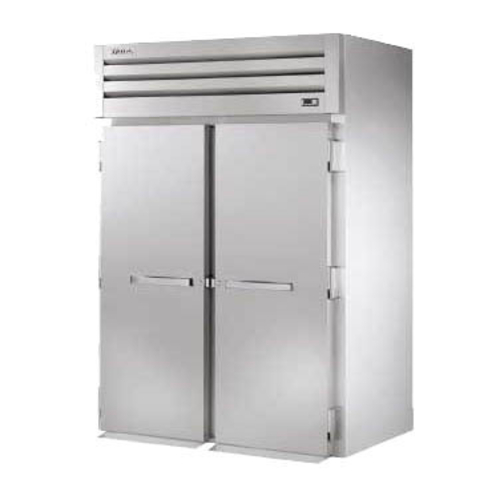

The True STA2HRI-2S roll-in heated holding cabinet is engineered for operations that require roll-in rack access while maintaining safe serving temperatures for cooked and baked foods. Designed to hold temperatures from 140°F to 180°F, this cabinet is not intended to heat ambient or cold product. It features a durable stainless steel exterior with aluminum interior side walls and back and stainless steel floor and ceiling for sanitation and long-term reliability. With even heat distribution and humidity control, this unit is ideal for bakeries, commissaries, and high-volume foodservice kitchens.
Key Features
Heater System
- Cabinet designed to provide holding temperatures of 140°F to 180°F (60°C to 82.2°C)
- Heating system controlled by exterior on/off switch and electronic temperature control
- Two stainless steel, finned tube heating elements per section (1000 watts each) for uniform electric heat generation
- Total heating capacity of 4000 watts
- Equipped with low-velocity fans to assure even temperature distribution throughout the cabinet; fans controlled by exterior on/off switch
- Manually controlled vent located on top of the cabinet for positive humidity control
Cabinet Construction
- Stainless steel breaker caps
- Entire cabinet structure and solid doors foamed-in-place using high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential
- One heavy-gauge stainless steel ramp per door
- Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27 in L x 29 in D x 66 in H (686 mm x 737 mm x 1677 mm)
Door System
- Solid stainless steel swing doors
- Lifetime guaranteed bolt-style door locks standard
- Lifetime guaranteed heavy-duty all-metal working door handles
- Positive seal self-closing doors with 120-degree stay-open feature
- Lifetime guaranteed external cam-lift door hinges, three per door section
- Magnetic door gaskets of one-piece construction, removable without tools
Lighting
-
Incandescent interior lighting, safety shielded and activated by exterior on/off switch
Model Features and Compliance
- Exterior color-coded temperature display for accurate direct reading of internal cabinet temperature
- Designed to hold warm baked or cooked food; cabinet is not designed to heat ambient or cold product
- Interior bumpers protect cabinet walls from abuse caused by roll-in carts
- 12 in x 20 in (305 mm x 508 mm) water pan included when additional humidity is required
- NSF/ANSI Standard 4 compliant for open food product
Electrical
- True requires a dedicated sole-use circuit
- Unit comes with four feed wires (L1, L2, N, GND) to be hardwired at installation site
- Electrical requirement: 115/208–240V / 60Hz / single phase, 20-amp dedicated circuit
Warranty
-
Three-year warranty on all parts and labor (USA only)
- Model:
- STA2HRI-2S
- Type:
- Roll-In Heated Holding Cabinet
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Number Of Doors:
- 2
- Door Type:
- Solid
- Rack Capacity:
- Accepts Roll-in Racks up to 27 in L x 29 in D x 66 in H
- Heating Output:
- 4000 Watts
- Temperature Range:
- 140°F to 180°F (60°C to 82.2°C)
- Voltage:
- 115/208-240/60/1
- Plug Type:
- Hardwired
- Dimensions(WxHxD):
- 68"x83.75"x34.75"
- Certifications:
- cULus, UL-EPH
- Origin Country:
- Made in the U.S.A
For complete product specifications and to download the file, please click below.
