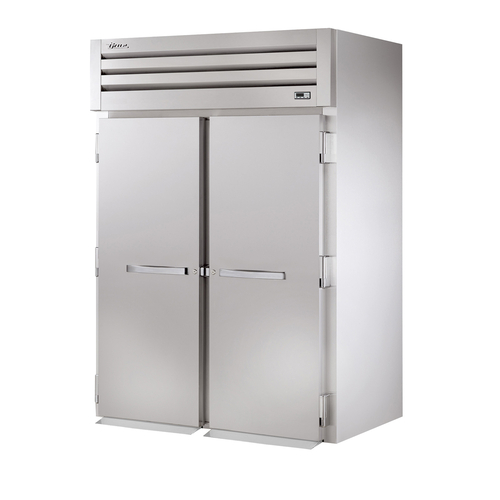

The True STA2FRI-2S-HC roll-in freezer is designed for high-capacity frozen storage with direct roll-in rack access, making it ideal for bakeries, commissaries, and high-volume foodservice operations. It maintains consistent cabinet temperatures of -10°F, suitable for frozen foods and ice cream. This unit operates with a factory-engineered, self-contained capillary tube refrigeration system using environmentally friendly CFC-free 404A refrigerant. With a stainless steel exterior and aluminum interior side walls and back with stainless steel floor and ceiling, the cabinet delivers durability, sanitation, and reliable freezing performance in demanding commercial environments.
Key Features
Refrigeration System
- Factory engineered, self-contained capillary tube system using environmentally friendly CFC-free 404A refrigerant
- Extra large evaporator coil balanced with higher horsepower compressor and large condenser maintains -10°F cabinet temperature, ideal for frozen foods and ice cream
- Sealed, cast iron, self-lubricating evaporator fan motors and larger fan blades provide efficient low velocity, high volume airflow
- Faster temperature recovery and shorter run times in busy foodservice environments
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity
- Automatic defrost system, time initiated and temperature terminated
- Automatic evaporator fan motor delay during defrost cycle
Cabinet Construction
- Entire cabinet structure and solid doors foamed-in-place using Ecomate high density polyurethane insulation with zero ODP and zero GWP
- Designed to accept roll-in racks (inboard castors) with maximum dimensions of 27 in L x 29 in D x 66 in H (686 mm x 737 mm x 1677 mm), supplied by others
- One heavy gauge stainless steel ramp included
Door System
- Solid stainless steel swing doors
- Lifetime guaranteed bolt style door locks standard
- Lifetime guaranteed heavy duty all-metal working door handles
- Positive seal self-closing doors with 120-degree stay open feature
- Lifetime guaranteed external cam lift door hinges, three per door section
- Magnetic door gasket of one-piece construction, removable without tools
Lighting
-
Incandescent interior lighting, safety shielded
Model Features and Compliance
- Exterior digital temperature display available in °F or °C
- Evaporator epoxy coated to eliminate the potential of corrosion
- Backguard improves airflow
- Interior bumpers protect cabinet walls from abuse caused by roll-in carts
- NSF-7 compliant for open food product
Electrical
- Unit completely pre-wired at factory and ready for final connection to 115/208-230V / 60Hz / single-phase, 20-amp dedicated outlet
- Cord and plug set included (NEMA 14-20P)
Warranty
- Three-year warranty on all parts and labor
- Additional two-year compressor warranty (USA only)
- Model:
- STA2F-4HS-HC
- Type:
- Roll-In Solid Swing Door Freezer
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls and Back - Stainless Steel Floor and Ceiling
- Door Configuration:
- Full Solid Swing Doors
- Number Of Sections:
- 2
- Number Of Doors:
- 2
- Door Type:
- Solid
- Compressor Location:
- Top Mount
- Rack Capacity:
- Accepts Roll-in Racks up to 27 in L x 29 in D x 66 in H
- HP:
- 1 1/5
- Amps:
- 8
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Temprature:
- -10°F (-23.3°C)
- Refrigerant:
- CFC Free 404A
- Dimensions (WxHxD):
- 68"x83.75"x34.75"
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
