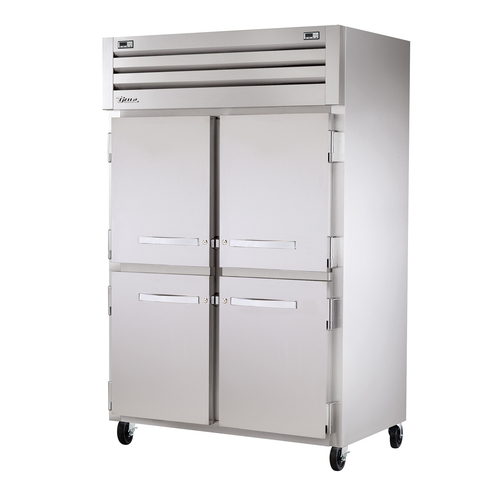

The True STA2DT-4HS-HC dual temperature reach-in refrigerator/freezer is designed to provide both refrigerated and frozen storage within a single upright cabinet, maximizing space efficiency in busy commercial kitchens. The left section functions as a refrigerator maintaining temperatures from 33°F to 38°F, while the right section operates as a freezer maintaining temperatures down to -10°F. This unit uses two independent, factory-balanced refrigeration systems with environmentally friendly refrigerants for reliable and efficient operation. Built with a stainless steel exterior and aluminum interior side walls and back with stainless steel floor and ceiling, this model delivers durability, sanitation, and dependable temperature control for demanding foodservice environments.
Key Features
Refrigeration System
- Two independent, self-contained refrigeration systems that are environmentally friendly and factory balanced
- R134A refrigerant for refrigerator section and R404A refrigerant for freezer section
- High capacity system maintains 33°F to 38°F in the refrigerator section (left side) and -10°F in the freezer section (right side)
- Electronically commutated evaporator and condenser fan motors for higher efficiency and consistent airflow
- Top mounted refrigeration system with evaporators positioned out of food zone to maximize capacity
- Freezer features automatic defrost system, time initiated and time terminated
- Automatic evaporator fan motor delay during defrost cycle
Cabinet Construction
- Entire cabinet structure and solid doors foamed-in-place using Ecomate high density polyurethane insulation with zero ODP and zero GWP
- 5 in diameter plate casters with locks provided on front set
Door System - Solid Half Swing Doors
- Solid stainless steel half swing doors
- Lifetime guaranteed bolt style door locks standard
- Heavy-duty all-metal working door handles
- Positive seal self-closing doors with 120-degree stay open feature
- Lifetime guaranteed external cam lift door hinges, four per door section
- Magnetic door gaskets of one-piece construction, removable without tools
Lighting
-
LED interior lighting, safety shielded
Model Features and Compliance
- Two exterior digital temperature displays, one for refrigerator and one for freezer
- Evaporator epoxy coated to eliminate potential corrosion
- Curb mounting ready
- NSF-7 compliant for open food product
Electrical
- Unit completely pre-wired at factory and ready for final connection to 115V / 60Hz / single-phase, 20-amp dedicated outlet
- Cord and plug set included (NEMA 5-20P)
Warranty
- Three-year warranty on all parts and labor
- Additional two-year compressor warranty (USA only)
- Model:
- STA2DT-4HS-HC
- Type:
- Dual Temperature Reach-In Refrigerator / Freezer
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls and Back - Stainless Steel Floor and Ceiling
- Door Configuration:
- Solid Half Swing Doors
- Number Of Sections:
- 2
- Number Of Doors:
- 4
- Door Type:
- Solid
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 6
- HP Refrigerator:
- 1/3
- HP Freezer:
- 1/2
- Amps:
- 11.6
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-20P
- Cord Length:
- 9 ft (2.74 m)
- Temprature Refrigerator:
- 33°F to 38°F (0.5°C to 3.3°C)
- Temprature Freezer:
- -10°F (-23.3°C)
- Refrigerant Refrigerator:
- 134A
- Refrigerant Freezer:
- R404A
- Dimensions (WxHxD):
- 52.63"x77.75"x33.75"
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
