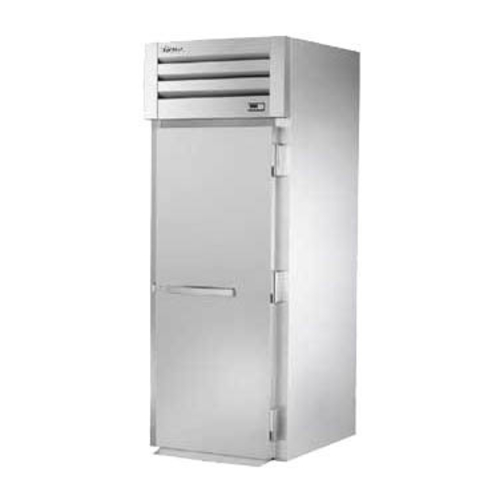

The True STA1RRT-1S-1S-HC roll-thru refrigerator is designed for operations that require continuous front-to-back access to roll-in racks while maintaining stable food-safe temperatures of 33°F to 38°F. With solid stainless steel swing doors on both sides, the unit minimizes cold air loss during loading and unloading. It uses a factory-engineered, self-contained capillary tube refrigeration system with environmentally friendly CFC-free 134A refrigerant. Built with a stainless steel exterior and aluminum interior side walls and back with stainless steel floor and ceiling, this model delivers durability, sanitation, and dependable cooling for demanding commercial kitchens.
Key Features
Refrigeration System
- Factory engineered, self-contained capillary tube system using environmentally friendly CFC-free 134A refrigerant
- Extra-large evaporator coil balanced with higher horsepower compressor and large condenser maintains cabinet temperatures of 33°F to 38°F for optimal food preservation
- Sealed, cast-iron, self-lubricating evaporator fan motors and larger fan blades provide low-velocity, high-volume airflow
- Faster temperature recovery and shorter run times in busy foodservice environments
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity
Cabinet Construction
- Entire cabinet structure and solid doors foamed-in-place using high-density polyurethane insulation with zero ODP and zero GWP
- Two heavy-gauge stainless steel ramps, one per door
- Designed to accept roll-in racks with maximum dimensions of 27 in L x 29 in D x 66 in H (686 mm x 737 mm x 1677 mm), supplied by others
Door System - Roll-Thru Solid Doors
- Solid stainless steel swing doors on both front and rear
- Lifetime guaranteed bolt-style door lock standard
- Heavy-duty all-metal working door handles
- Positive-seal self-closing doors with 120-degree stay-open feature
- Lifetime guaranteed external cam-lift door hinges, three per door section
- Magnetic door gasket of one-piece construction, removable without tools
Lighting
-
Incandescent interior lighting, safety shielded
Model Features and Compliance
- Exterior digital temperature display available in °F or °C
- Evaporator epoxy coated to eliminate potential corrosion
- Interior bumpers protect cabinet walls from abuse caused by roll-in carts
- NSF-7 compliant for open food product
Electrical
- Unit completely pre-wired at factory and ready for final connection to 115V / 60Hz / single-phase, 15-amp dedicated outlet
- Cord and plug set included
Warranty
- Three-year warranty on all parts and labor
- Additional two-year compressor warranty (USA only)
- Model:
- STA1RRT-1S-1S-HC
- Type:
- Roll-Thru Swing Door Refrigerator
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Door Configuration:
- Solid Front Door - Solid Rear Door
- Number Of Sections:
- 1
- Number Of Doors:
- 1
- Door Type:
- Front Solid / Rear Solid
- Compressor Location:
- Top Mount
- Rack Capacity:
- Accepts roll-in racks up to 27 in L x 29 in D x 66 in H
- HP:
- 1/3
- Amps:
- 8.9
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Temprature Range:
- 33°F to 38°F (0.5°C to 3.3°C)
- Refrigerant:
- 134A Refrigerant
- Dimensions (WxHxD):
- 35"x83.75"x37.50"
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
