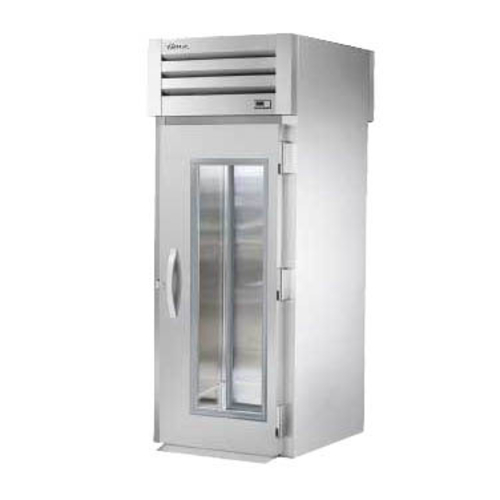

The True STA1RRT-1G-1S-HC roll-thru refrigerator is designed for high-volume kitchens that require efficient front and rear access to roll-in racks while maintaining consistent food-safe temperatures of 33°F to 38°F. The glass front swing door allows quick product identification, while the solid stainless steel rear door enhances insulation and temperature stability in prep areas. It operates with a factory-engineered, self-contained capillary tube refrigeration system using environmentally friendly 134A refrigerant. Built with a stainless steel exterior and aluminum interior side walls and back with stainless steel floor and ceiling, this unit provides durability, sanitation, and dependable cold storage performance in demanding commercial foodservice environments.

Key Features

Refrigeration System

• Factory engineered, self-contained capillary tube system using environmentally friendly CFC-free 134A refrigerant
• Extra-large evaporator coil balanced with higher horsepower compressor and large condenser maintains cabinet temperatures of 33°F to 38°F for optimal food preservation
• Sealed cast-iron, self-lubricating evaporator fan motors and larger fan blades provide low-velocity, high-volume airflow
• Faster temperature recovery and shorter run times in busy foodservice environments
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity

Cabinet Construction

• Entire cabinet structure and solid door foamed-in-place using high-density polyurethane insulation with zero ODP and zero GWP
• Two heavy-gauge stainless steel ramps, one per door
• Designed to accept roll-in racks with maximum dimensions of 27 in L x 29 in D x 66 in H (686 mm x 737 mm x 1677 mm), supplied by others

Door System - Roll-Thru Configuration

• Front door is Low-E double-pane thermal insulated glass
• Rear door is solid stainless steel
• Lifetime guaranteed bolt-style door lock standard
• Heavy-duty all-metal working door handles
• Positive-seal self-closing doors with 120-degree stay-open feature
• Lifetime guaranteed external cam-lift door hinges, three per door section
• Magnetic door gasket of one-piece construction, removable without tools

Lighting

• Incandescent interior lighting, safety shielded

Model Features and Compliance

• Exterior digital temperature display available in °F or °C
• Evaporator epoxy coated to eliminate potential corrosion
• Interior bumpers protect cabinet walls from abuse caused by roll-in carts
• NSF-7 compliant for open food product

Electrical

• Unit completely pre-wired at factory and ready for final connection to 115V / 60Hz / single-phase, 15-amp dedicated outlet
• Cord and plug set included

Warranty

• Three-year warranty on all parts and labor
• Additional two-year compressor warranty (USA only)
