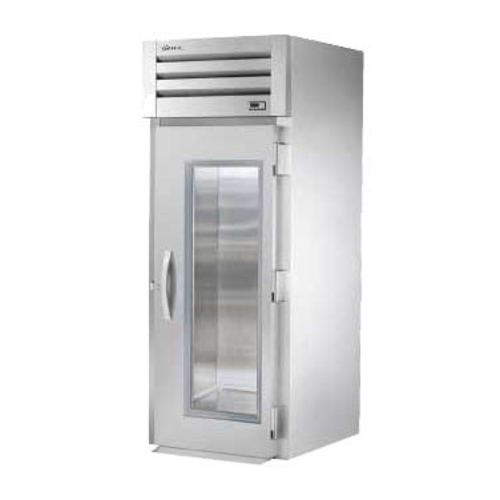

The True STA1RRI-1G-HC roll-in refrigerator is designed to accommodate roll-in racks for high-volume foodservice operations that require fast loading and efficient cold storage. It maintains consistent cabinet temperatures of 33°F to 38°F using a factory-engineered, self-contained refrigeration system with environmentally friendly R290 hydrocarbon refrigerant. The glass swing door allows clear product visibility while maintaining insulation with Low-E double-pane construction. Built with a stainless steel exterior and aluminum interior side walls and back with stainless steel floor and ceiling, this unit delivers durability, sanitation, and dependable refrigeration performance in demanding commercial kitchens.
Key Features
Refrigeration System
- Factory engineered, self-contained expansion valve (TXV) refrigeration system
- Uses environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and 0.02 global warming potential
- Extra-large evaporator coil balanced with higher horsepower compressor and large condenser maintains cabinet temperatures of 33°F to 38°F
- Sealed cast-iron self-lubricating evaporator fan motors with larger fan blades provide low-velocity, high-volume airflow
- Faster temperature recovery and shorter run times in busy foodservice environments
- Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity
Cabinet Construction
- Entire cabinet structure and solid door foamed-in-place using high-density polyurethane insulation with zero ODP and zero GWP
- Designed to accept roll-in racks with maximum dimensions of 27 in L x 29 in D x 66 in H, supplied by others
Door System
- Low-E double-pane thermal insulated glass swing door
- Lifetime guaranteed bolt-style door lock standard
- Heavy-duty all-metal working door handle
- Positive-seal self-closing door with 120-degree stay-open feature
- External cam-lift door hinges, three per door section
- Magnetic one-piece door gasket removable without tools
- Field reversible hinge
Interior Protection and Accessories
-
Interior bumpers protect cabinet walls from damage caused by roll-in carts
Lighting and Controls
- Incandescent interior lighting, safety shielded
- Exterior digital temperature display selectable in °F or °C
Compliance and Electrical
- NSF/ANSI Standard 7 compliant for open food product
- Unit pre-wired at factory for 115V / 60Hz / single-phase, 15-amp dedicated outlet
- Cord and plug set included
Warranty
- Three-year warranty on parts and labor
- Additional two-year compressor warranty (USA only)
- Model:
- STA1RRI-1G-HC
- Type:
- Roll-In Glass Swing Door Refrigerator
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Door Configuration:
- Full Glass Swing Door
- Number Of Sections:
- 1
- Number Of Doors:
- 1
- Door Type:
- Glass
- Compressor Location:
- Top Mount
- Rack Capacity:
- Accepts Roll-in Racks up to 27 in L x 29 in D x 66 in H
- HP:
- 1/3
- Amps:
- 8.9
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Temprature Range:
- 33°F to 38°F (0.5°C to 3.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 35"x83.75"x34.75"
- Supports:
- Base
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
For complete product specifications and to download the file, please click below.
