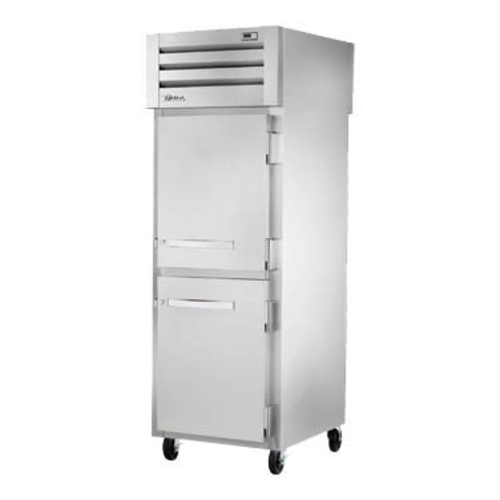

The True STA1RPT-2HS-1S-HC pass-thru reach-in refrigerator is designed to support efficient kitchen workflow by allowing access from both sides while minimizing cold air loss through its solid half-door front and solid rear door configuration. It maintains consistent cabinet temperatures of 33°F to 38°F using a factory-engineered, self-contained refrigeration system with environmentally friendly R290 hydrocarbon refrigerant. The solid half front doors reduce temperature fluctuations during frequent access, while the solid rear door improves insulation in service areas. Built with a stainless steel exterior and aluminum interior side walls with stainless steel floor and ceiling, this unit provides durability, sanitation, and dependable refrigeration for commercial foodservice operations.

Key Features

Refrigeration System

• Factory engineered, self-contained capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero ozone depletion potential and global warming potential of 3
• High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F for optimal food preservation
• Electronically commutated evaporator and condenser fan motors that operate at higher peak efficiencies and move a more consistent volume of air
• Top mounted refrigeration system with evaporator positioned out of food zone to maximize capacity
• Electronic temperature control

Cabinet Construction

• Entire cabinet structure and solid doors are foamed-in-place using high density polyurethane insulation with zero ozone depletion potential and zero global warming potential
• Five inch diameter plate casters with locks provided on front set

Door System - Pass-Thru Solid Half Front and Solid Rear

• Solid stainless steel half swing doors on front and solid stainless steel rear swing door
• Lifetime guaranteed bolt style door lock standard
• Lifetime guaranteed heavy duty all metal working door handles
• Positive seal self closing doors with 120 degree stay open feature
• Lifetime guaranteed external cam lift door hinges, four per door section
• Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning

Interior and Shelving

• Aluminum interior side walls and back
• Stainless steel floor and ceiling
• Three heavy duty chrome plated wire shelves per section

Lighting and Controls

• LED interior lighting, safety shielded
• Exterior digital temperature display available in °F or °C

Model Features and Compliance

• Evaporator epoxy coated to eliminate potential corrosion
• Curb mounting ready
• NSF/ANSI Standard 7 compliant for open food product

Electrical

• Unit completely pre-wired at factory and ready for final connection to a 115V / 60Hz / single phase, 15 amp dedicated outlet
• Cord and plug set included

Warranty

• Three year warranty on all parts and labor
• Additional two year warranty on compressor (USA only)
