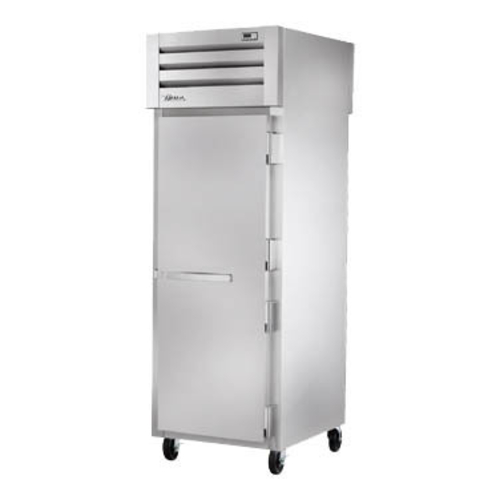

The True STA1RPT-1S-1G-HC pass-thru reach-in refrigerator is designed to streamline kitchen workflow by providing access from both the prep and service sides while maintaining consistent food-safe temperatures of 33°F to 38°F. The solid stainless steel front door improves insulation in high-traffic prep areas, while the glass rear door offers product visibility and quick access from service zones. This unit operates with a factory-engineered, self-contained refrigeration system using environmentally friendly R290 hydrocarbon refrigerant. Built with a stainless steel exterior and aluminum interior side walls with stainless steel floor and ceiling, it delivers durability, sanitation, and dependable performance for demanding commercial foodservice environments.
Key Features
Refrigeration System
- Factory-engineered, self-contained capillary tube system
- Uses R290 hydrocarbon refrigerant with zero ozone depletion and very low global warming potential
- Maintains cabinet temperatures of 33°F to 38°F
- High-capacity, factory-balanced refrigeration system
- ECM evaporator and condenser fan motors for higher efficiency and reliability
- Top-mounted refrigeration system with evaporator positioned out of food zone
- Electronic temperature control
Cabinet Construction
- Entire cabinet and solid door foamed-in-place with high-density polyurethane insulation
- Insulation has zero ODP and zero GWP
- Five-inch diameter plate casters with front locking
Door System - Pass-Thru Configuration
- Front door is solid stainless steel
- Rear door is Low-E double-pane thermal insulated glass
- Lifetime guaranteed bolt-style door lock
- Heavy-duty all-metal working door handles
- Positive-seal self-closing doors with 120-degree stay-open feature
- External cam-lift hinges, four per door section
- One-piece magnetic door gaskets removable without tools
Interior and Shelving
- Aluminum interior side walls and back
- Stainless steel floor and ceiling
- Three heavy-duty chrome-plated wire shelves per section
Lighting and Controls
- LED interior lighting, safety shielded
- Exterior digital temperature display selectable in °F or °C
Compliance and Installation
- Curb-mounting ready
- NSF/ANSI Standard 7 compliant for open food product
- Pre-wired for 115V / 60Hz / single-phase, 15-amp dedicated outlet
- Cord and plug included
Warranty
- Three-year parts and labor warranty
- Additional two-year compressor warranty (USA only)
- Model:
- STA1RPT-1S-1G-HC
- Type:
- Pass-Thru Reach-In Refrigerator
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Number Of Sections:
- 1
- Number Of Doors:
- 2
- Door Type:
- Front Solid/Rear Glass
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 3
- HP:
- 1/4
- Amps:
- 3.8
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Temprature Range:
- 33°F to 38°F (0.5°C to 3.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 27.5"x77.75"x36.13"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
