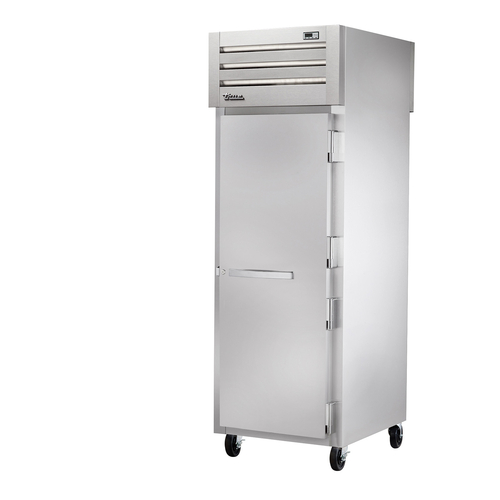

The True STA1HPT-1S-1S Spec Series® pass-thru heated holding cabinet is designed to improve kitchen efficiency by allowing access from both the front and rear while maintaining safe serving temperatures for cooked foods. It provides consistent holding temperatures from 140°F to 180°F, making it ideal for bakeries, cafeterias, and high-volume kitchens. The cabinet features a stainless steel exterior with aluminum interior side walls and stainless steel floor and ceiling for durability and sanitation. With low-velocity airflow, manual humidity vent control, and an exterior digital temperature display, this unit ensures even heat distribution and dependable hot food holding while meeting NSF-4 standards for open food products.
Key Features - TRUE STA1HPT-1S-1S
Heating System
- Designed to hold food at 140°F to 180°F (60°C to 82.2°C)
- Heating system controlled by exterior on/off switch and electronic temperature control
- One stainless steel heating element for uniform heat generation
- Total cabinet output: 1500 watts
- Manually controlled top vent for positive humidity control
Cabinet Construction
- Foamed-in-place Ecomate polyurethane insulation (zero ODP, zero GWP)
- 5" diameter plate casters, front locking
Door System (Pass-Thru Configuration)
- Solid stainless steel swing doors on both front and rear
- Lifetime guaranteed bolt-style door locks
- Heavy-duty all-metal door handles
- Positive seal self-closing doors with 120° stay-open feature
- External cam-lift hinges, 4 per door section
- One-piece magnetic door gaskets, removable without tools
Interior & Shelving (STA Model-Specific)
- Aluminum interior side walls and back
- Stainless steel floor and ceiling
- (3) heavy-duty chrome-plated wire shelves per section
Controls & Compliance
- Exterior digital temperature display (°F or °C selectable)
- Designed to hold warm baked or cooked food only (not for heating cold product)
- NSF-4 compliant for open food product
Electrical
- Requires dedicated circuit
- Pre-wired at factory
- Ready for 208–230V / 60Hz / 1-phase, 15-amp outlet
- Cord and plug included
Warranty
- 3-year parts & labor warranty
- Additional 2-year compressor warranty (USA only)
- Model:
- STA1HPT-1S-1S
- Type:
- Pass-Thru Heated Holding Cabinet
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Number Of Doors:
- 2
- Door Type:
- Solid Front/Solid Rear
- Number Of Shelves:
- 3
- Heating Output:
- 1500 Watts
- Temperature Range:
- 140°F to 180°F (60°C to 82.2°C)
- Voltage:
- 208-230 / 60 / 1
- Plug Type:
- NEMA 6-15P
- Cord Length:
- 9 ft (2.74 m)
- Casters:
- 5" Diameter, Front Locking
- Dimensions(WxHxD):
- 27.5"x77.75"x36.13"
- Certifications:
- cULus, UL-EPH
- Origin Country:
- Made in the U.S.A
For complete product specifications and to download the file, please click below.
