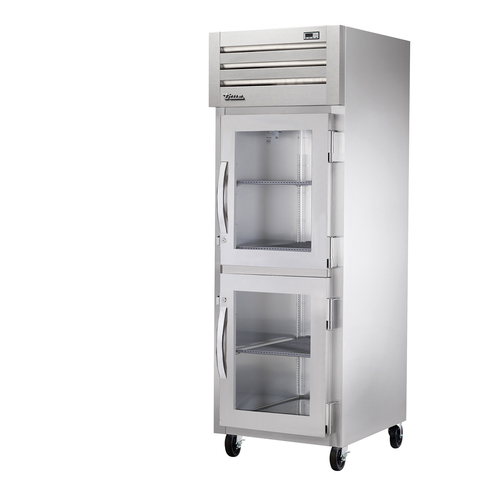

The True STA1H-2HG Spec Series® reach-in heated holding cabinet is designed to maintain cooked foods at safe serving temperatures while reducing heat loss through its dual glass half-door configuration. It delivers consistent holding temperatures from 140°F to 180°F, making it ideal for baked and prepared foods in foodservice environments. The cabinet features a stainless steel exterior with aluminum interior side walls and stainless steel floor and ceiling for durability and sanitation. Equipped with low-velocity circulation fans, manual humidity vent control, and a digital temperature display, this model provides even heat distribution and reliable hot food holding while meeting NSF-4 requirements for open food products.
Key Features - TRUE STA1H-2HG
Heating System
- Designed to hold food at 140°F to 180°F (60°C to 82.2°C)
- Heating controlled by exterior on/off switch and electronic temperature control
- One stainless steel heating element for uniform heat generation
- Total cabinet output: 1500 watts
- Low-velocity fans for even temperature distribution
- Manually controlled top vent for positive humidity control
Cabinet Construction
- Foamed-in-place Ecomate polyurethane insulation (zero ODP, zero GWP)
- 5" diameter plate casters, front locking
Door System
- Two “Low-E” double-pane thermal insulated glass half swing doors
- Lifetime guaranteed bolt-style door locks
- Heavy-duty all-metal door handles
- Self-closing doors with 120° stay-open feature
- External cam-lift hinges (4 per door section)
- One-piece magnetic door gaskets, removable without tools
Interior & Shelving (STA Model-Specific)
- Aluminum interior side walls and back
- Stainless steel floor and ceiling
- (3) heavy-duty chrome-plated wire shelves per section
Controls & Compliance
- Exterior digital temperature display (°F or °C selectable)
- Designed for holding warm baked or cooked food only (not for heating cold product)
- NSF-4 compliant for open food product
Electrical
- Requires dedicated circuit
- Pre-wired at factory
- Ready for 208–230V / 60Hz / 1-phase, 15-amp outlet
- Cord and plug included
Warranty
- 3-year parts & labor warranty
- Additional 2-year compressor warranty (USA only)
- Model:
- STA1H-2HG
- Type:
- Reach-In Glass Half Swing Door Heated Cabinet
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Number Of Doors:
- 2
- Door Type:
- Glass
- Number Of Shelves:
- 3
- Heating Output:
- 1500 Watts
- Temperature Range:
- 140°F to 180°F (60°C to 82.2°C)
- Voltage:
- 208-230 / 60 / 1
- Plug Type:
- NEMA 6-15P
- Cord Length:
- 9 ft (2.74 m)
- Casters:
- 5" Diameter, Front Locking
- Dimensions(WxHxD):
- 27.5"x77.75"x33.75"
- Certifications:
- cULus, UL-EPH
- Origin Country:
- Made in the U.S.A
