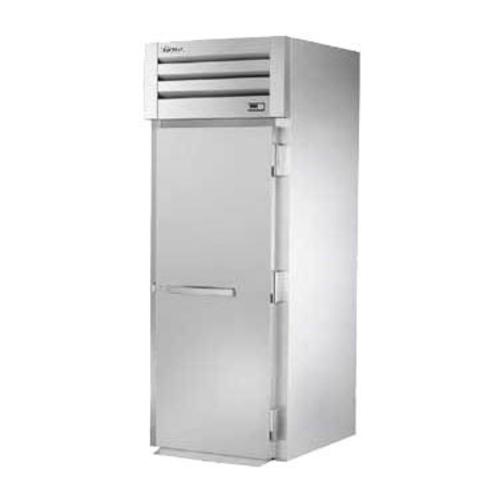

The True STA1FRI-1S-HC Spec Series® roll-in freezer is designed for high-volume foodservice operations that require fast loading of roll-in racks and dependable frozen storage. It maintains consistent -10°F cabinet temperatures, making it ideal for frozen foods and ice cream. The unit features a stainless steel exterior with aluminum interior side walls and stainless steel floor and ceiling, along with a heavy-gauge stainless steel ramp for smooth rack entry. A top-mounted refrigeration system, large evaporator coil, and sealed fan motors ensure fast temperature recovery and reliable performance, while NSF-7 compliance and digital temperature display make it suitable for demanding commercial kitchens.
Key Features - TRUE STA1FRI-1S-HC
Refrigeration System
- Factory-engineered, self-contained capillary tube system
- Uses CFC-free R404A refrigerant
- Maintains -10°F (-23.3°C) cabinet temperature
- Extra-large evaporator coil with higher horsepower compressor and large condenser
- Sealed, cast-iron, self-lubricating evaporator fan motors with large fan blades for low-velocity, high-volume airflow
- Top-mounted refrigeration system with evaporator positioned out of food zone
- Automatic defrost: time-initiated, temperature-terminated
- Automatic evaporator fan motor delay during defrost
Cabinet Construction
- Foamed-in-place Ecomate polyurethane insulation (zero ODP, zero GWP)
- One (1) heavy-gauge stainless steel ramp
- Designed to accept roll-in racks (inboard casters) up to 27"L × 29"D × 66"H (supplied by others)
Door System
- Solid swing door design
- Lifetime guaranteed bolt-style door lock
- Heavy-duty all-metal door handle
- Self-closing door with 120° stay-open feature
- External cam-lift hinges (3 per door section)
- One-piece magnetic door gasket, removable without tools
Interior Protection
-
Interior bumpers protect cabinet walls from damage caused by roll-in carts
Lighting & Controls
- Incandescent interior lighting, safety shielded
- Exterior digital temperature display (°F or °C selectable)
Compliance & Installation
- NSF-7 compliant for open food product
- Pre-wired, includes cord and plug
Warranty
- 3-year parts & labor warranty
- Additional 2-year compressor warranty (USA only)
- Model:
- STA1FRI-1S-HC
- Type:
- Roll-In Solid Swing Door Freezer
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Rack Capacity:
- Accepts Roll-in Racks up to 27"L × 29"D × 66"H
- Number Of Doors:
- 1
- Door Type:
- Solid
- Hinge Configuration:
- Right
- Compressor Location:
- Top Mount
- Special Features:
- Casters Included - Uninstalled
- HP:
- 3/4
- Amps:
- 12
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Freezer Temprature Range:
- -10°F (-23.3°C)
- Refrigerant:
- R404A (CFC-free)
- Dimensions (WxHxD):
- 27.5"x77.75"x33.75"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
