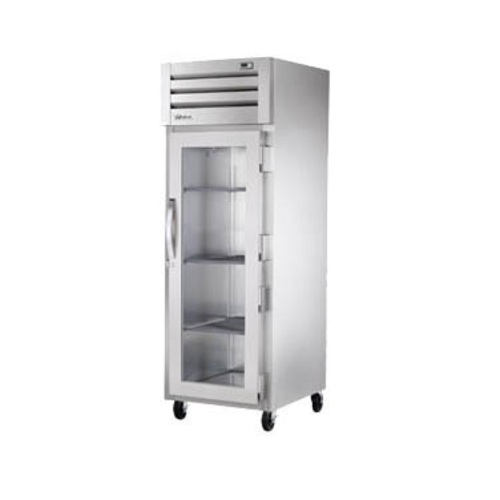

The True STA1F-1G-HC Spec Series® reach-in glass door freezer is a single-section commercial display freezer designed for frozen food and ice cream merchandising in foodservice environments. It features a factory-engineered, self-contained refrigeration system using environmentally friendly R290 hydrocarbon refrigerant, maintaining consistent -10°F operating temperatures. The triple-pane thermal glass door provides excellent product visibility while minimizing heat transfer, and the durable cabinet construction combines a stainless steel exterior with aluminum interior walls and stainless steel floor and ceiling. With energy-efficient ECM fan motors, top-mounted refrigeration, LED interior lighting, and NSF compliance, this freezer delivers reliable performance and efficient operation in high-traffic commercial settings.
Key Features - TRUE STA1F-1G-HC
Refrigeration System
- Factory-engineered, self-contained capillary tube system
- Uses R290 hydrocarbon refrigerant (0 ODP, GWP of 3)
- Maintains -10°F (-23.3°C) operating temperature
- ECM evaporator and condenser fan motors for energy efficiency
- Top-mounted refrigeration system with evaporator out of food zone
- Automatic defrost: time-initiated, temperature-terminated
- Automatic evaporator fan motor delay during defrost
Cabinet Construction
- Foamed-in-place Ecomate polyurethane insulation (zero ODP, zero GWP)
- 5" diameter plate casters with front locking
Door & Visibility
- Triple-pane thermal glass door with extruded aluminum frame
- Lifetime guaranteed bolt-style door lock
- Heavy-duty all-metal door handle
- Self-closing door with 120° stay-open feature
- External cam-lift hinges (4 per door section)
- One-piece magnetic door gasket, tool-free removal
Interior & Shelving (STA Model-Specific)
- Aluminum interior side walls and back
- Stainless steel floor and ceiling
- (3) heavy-duty chrome-plated wire shelves
Lighting & Controls
- LED interior lighting, safety shielded
- Exterior digital temperature display (°F or °C selectable)
Compliance & Installation
- NSF/ANSI Standard 7 compliant for open food product
- Curb-mounting ready
- Pre-wired, includes cord and plug
Warranty
- 3-year parts & labor warranty
- Additional 2-year compressor warranty (USA only)
- Model:
- STA1F-1G-HC
- Type:
- Reach-In Glass Swing Door Freezer
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Cubic Feet:
- 23.86
- Number Of Doors:
- 1
- Door Type:
- Glass
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 3
- HP:
- 1
- Amps:
- 8.9
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Freezer Temprature Range:
- -10°F (-23.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 27.5"x77.75"x33.75"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- cULus, UL-EPH
For complete product specifications and to download the file, please click below.
