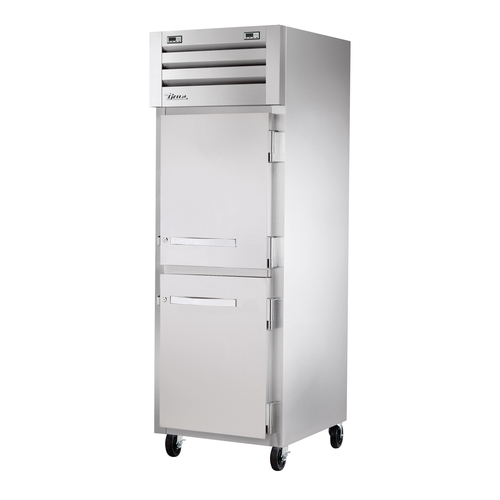

The True STA1DTA-2HS-HC Spec Series® reach-in refrigerator/freezer is a dual-temperature commercial unit designed with an alternative configuration, featuring the freezer in the top section and the refrigerator in the bottom for ergonomic access to frozen products. It utilizes two independent, factory-engineered refrigeration systems with environmentally friendly R290 hydrocarbon refrigerant, delivering reliable temperature performance of -10°F in the freezer and 33°F to 38°F in the refrigerator. Built with a stainless steel exterior and durable aluminum interior walls with stainless steel floor and ceiling, this unit combines energy-efficient ECM fan motors, epoxy-coated evaporators, and top-mounted refrigeration to maximize storage capacity and long-term operational efficiency in demanding food service environments.
Key Features — TRUE STA1DTA-2HS-HC
Refrigeration System
- Two independent, self-contained refrigeration systems
- Uses R290 hydrocarbon refrigerant (0 ODP, GWP of 3)
- Freezer on top section, refrigerator on bottom section
- Temperature ranges: Freezer: -10°F (-23.3°C) / Refrigerator: 33°F to 38°F (0.5°C to 3.3°C)
- High-capacity, factory-balanced refrigeration system
- ECM evaporator and condenser fan motors for energy efficiency
- Top-mounted refrigeration system with evaporator out of food zone
- Automatic freezer defrost (time-initiated, time-terminated)
- Automatic evaporator fan motor delay during defrost cycle
Cabinet Construction
- Foamed-in-place high-density polyurethane insulation (zero ODP, zero GWP)
- 5" diameter plate casters, front locking
Doors
- Lifetime guaranteed bolt-style door locks
- Heavy-duty all-metal door handles
- Self-closing doors with 120° stay-open feature
- External cam-lift hinges (4 per door section)
- One-piece magnetic door gaskets, tool-free removal
Interior & Shelving (STA Model-Specific)
- Aluminum interior side walls and back
- Stainless steel floor and ceiling
- (3) heavy-duty chrome-plated wire shelves per section
Lighting & Controls
- LED interior lighting, safety shielded
- Two exterior digital temperature displays (one per compartment)
Compliance & Installation
- NSF/ANSI Standard 7 compliant for open food product
- Curb-mounting ready
- Pre-wired, includes cord and plug
Warranty
- 3-year parts & labor warranty
- Additional 2-year compressor warranty (USA only)
- Model:
- STA1DTA-2HS-HC
- Configuration:
- Dual-Temperature, Freezer Top / Refrigerator Bottom
- Type:
- Reach-In Solid Half Swing Door Dual-Temperature Freezer/Refrigerator
- Exterior:
- Stainless Steel Door, Front & Sides
- Interior:
- Aluminum Side Walls & Back; Stainless Steel Floor & Ceiling
- Cubic Feet:
- 19
- Number Of Doors:
- 2
- Door Type:
- Solid
- Compressor Location:
- Top Mount
- Number Of Shelves:
- 6
- Refrigerator Compressor:
- 1/10 HP
- Freezer Compressor:
- 1/4 HP
- Amps:
- 3.7
- Voltage:
- 115 / 60 / 1
- Plug Type:
- NEMA 5-15P
- Cord Length:
- 9 ft (2.74 m)
- Refrigerator Temprature Range:
- 33°F to 38°F (0.5°C to 3.3°C)
- Freezer Temprature Range:
- -10°F (-23.3°C)
- Refrigerant:
- R290 Hydrocarbon
- Dimensions (WxHxD):
- 27.5"x77.75"x33.75"
- Casters:
- 5" Diameter, Front Locking
- Origin Country:
- Made in the U.S.A
- Certifications:
- ENERGY STAR, cULus, UL-EPH
