The PizzaMaster 400 Series Multi Purpose CounterTop Ovens are compact, high-performance electric stone hearth ovens designed for commercial pizzerias, cafés, bakeries, restaurants, convenience stores, and other foodservice operations. Available in single-width and double-width countertop models with one or two independently controlled baking decks, the 400 Series combines powerful heating performance with baking temperatures up to 400°C (752°F) as standard. Featuring natural clay hearthstones with crisping function, digital controls, turbo start technology, and durable stainless steel construction, these ovens provide consistent baking results while maximizing production capacity within a compact footprint. Their modular, stackable design also allows operators to expand capacity as business needs grow.
Features of the 400 Series
Standard Features
- Compact countertop stone hearth oven design

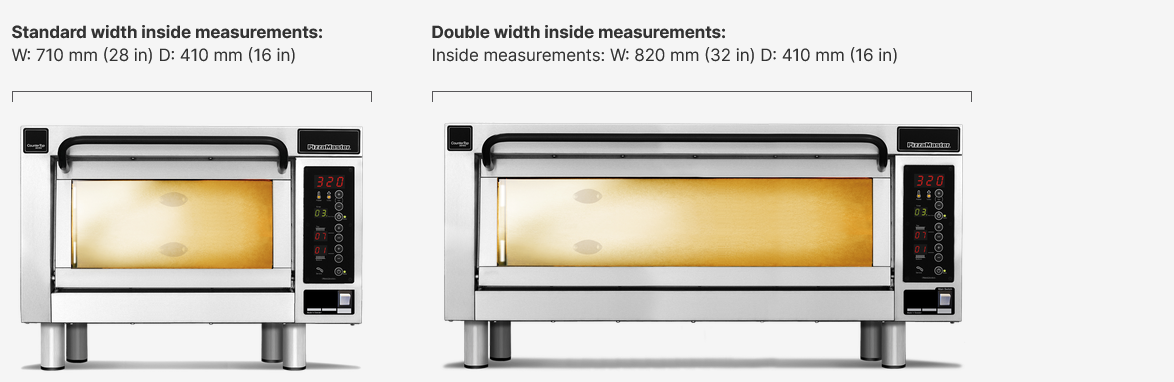

- Available in single-width and double-width configurations

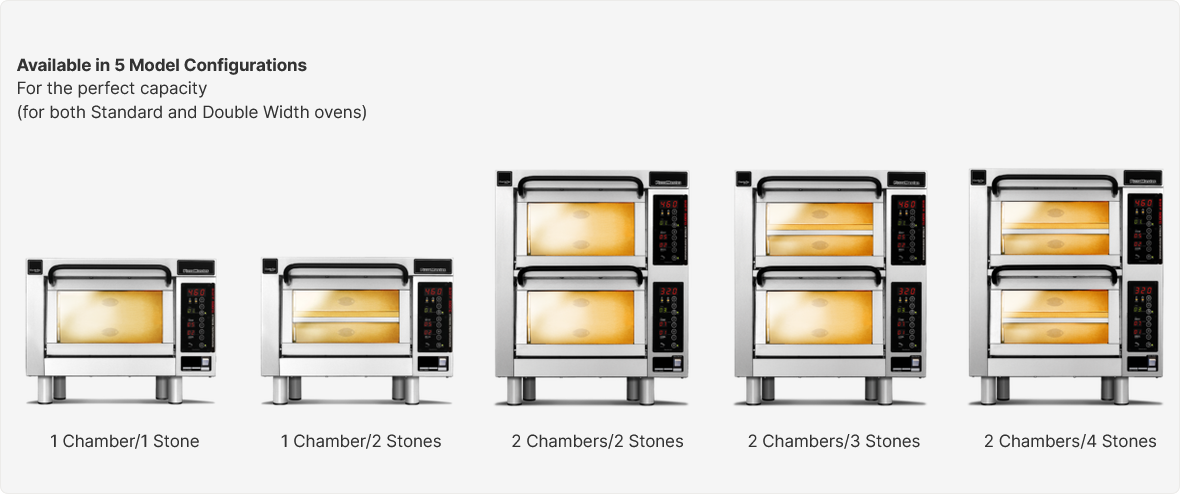

- One or two independent baking decks depending on model
- High power output for fast heat-up and recovery
- Maximum baking temperature of 400°C (752°F) as standard
- Natural clay hearthstones with crisping function
- Stainless steel exterior (except exterior bottom and rear panel)
- Turbo Start heating function
- Dual halogen lighting in each deck
- Digital temperature display
- Thermostat, Turbo Start and service indicators
- Heat-reflecting glass viewing door
- Manual bake timer with shut-off alarm
- Automatic bake timer with audible alarm
- Stackable design using optional stacking kit
- Scandinavian engineered design
- International certifications available
- Two-year limited warranty
Optional Features & Accessories
Factory Options
- Marine version
- Stacking kit (required when stacking ovens)
- High Temperature Deck (500°C / 932°F)
- Available for lower or upper deck
- Not compatible with Steam System
- Steam System
- Available for lower or upper deck
- Adds approximately 100 mm (4 in.) to oven depth
- Not compatible with High Temperature Deck or ovens equipped with two stones per deck
- Phantom Black finish
- Royal Gold finish
Support Stands
- PM401-S
- PM402-S
- PM403-S
- PM404-S
- PM401DW-S
- PM402DW-S
- PM403DW-S
- PM404DW-S
Shelf Support Packages
- SP-1
- SP-2
- SP-1DW
- SP-2DW
(Shelf support packages are ordered separately and are not available for PM403 or PM404 support stands.)
| Model | Decks | Power (kW) | Available Electrical Supply |
|---|---|---|---|
| PM401ED-1 | 1 | 3.05 kW | 230V 1ph, 200V 3ph, 208V 1ph, 240V 1ph |
| PM401ED-2 | 1 | 4.55 kW | 230V 1ph, 230V 3ph, 400V 3ph+N, 200V 3ph, 208V 1ph, 208V 3ph, 240V 1ph, 240V 3ph, 480V 3ph+N, 400V 3ph, 460V 3ph |
| PM402ED-2 | 2 | 6.10 kW | Same voltage options as above |
| PM402ED-3 | 2 | 7.60 kW | Same voltage options as above |
| PM402ED-4 | 2 | 9.10 kW | Same voltage options as above |
| PM401ED-1DW | 1 | 6.05 kW | Same voltage options as above |
| PM401ED-2DW | 1 | 9.05 kW | Same voltage options as above |
| PM402ED-2DW | 2 | 12.10 kW | Same voltage options as above |
| PM402ED-3DW | 2 | 15.10 kW | Same voltage options as above |
| PM402ED-4DW | 2 | 18.10 kW | Same voltage options as above |
Installation & Operating Requirements
- Minimum installation clearance: 50 mm (2 in.) on all sides.
- No dedicated ventilation connection required.
- Steam system models require a G¾" / NH¾" water connection with 1–6 bar (0.1–0.6 MPa) water pressure.
- Installation, servicing, and electrical work must be performed by qualified personnel in accordance with local and national codes.
- Optional stacking supports allow ovens to be configured for higher production while maintaining a compact footprint.
