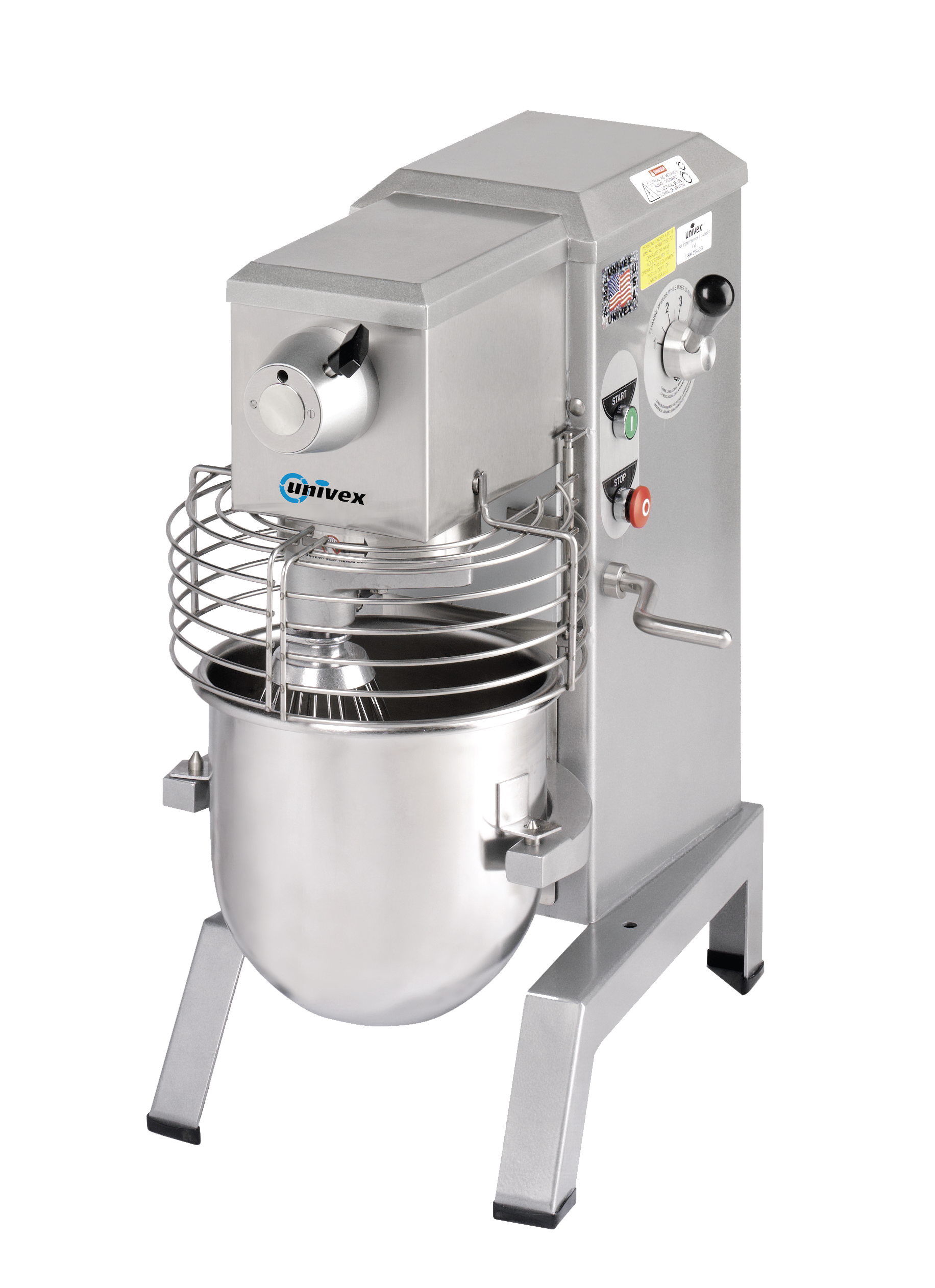

Univex SRM12+
The Univex SRM12+ is a professional-grade 12-quart planetary countertop mixer engineered for commercial kitchens, bakeries, cafés, and catering environments. Powered by a durable 1/3 HP capacitor-start motor and hardened alloy gear transmission, the mixer offers variable speed control with four fixed speeds plus infinite adjustments in-between - without stopping operation. Its heavy-duty stainless steel bowl, dishwasher-safe safety guard, ergonomic hand-crank lift, and operator interlock system ensure both safety and ease of use. Designed with a rugged NSF-approved hybrid powder-coat finish, the SRM12+ supports a wide range of mixing tasks and can be expanded with optional power take-off (PTO) hub attachments for slicing, shredding, and grinding, making it a versatile all-purpose solution for any commercial food operation.
Key Features
- 12-quart capacity with heavy-duty stainless steel bowl
- 1/3 HP capacitor-start motor with hardened alloy gear transmission
- Variable speed drive with 4 fixed speeds + infinite adjustments
- Change speeds without stopping the mixer
- Dishwasher-safe stainless steel safety guard
- Operator safety interlocks for guard and bowl lift position
- Ergonomic hand-crank bowl lift with self-locking positions
- NSF-approved hybrid epoxy/polyester powder-coat finish
- Includes bowl, dough hook, batter beater, and wire whip
- Optional #12 PTO hub for slicer, shredder, grinder attachments
Specifications
|
Category
|
Details |
| Model | Univex SRM12+ 12-Qt Countertop Mixer |
| Bowl Capacity | 12 qt (14.2 L) |
| Motor Power | 1/3 HP capacitor-start |
| Speed Range (Beater Shaft RPM) | 152 / 228 / 321 / 406 |
| Speed Range (PTO RPM) | 117 / 178 / 231 / 316 |
| Transmission | Hardened alloy gears; torque-sensing variable pulleys |
| Controls | Momentary stop/start buttons + contactor |
| Safety Features | Interlock switches, dishwasher-safe stainless guard |
| Bowl Lift | Manual hand-crank, self-locking top/bottom |
| Construction Finish | NSF-approved hybrid epoxy/polyester powder coat |
| Electrical (Standard) | 115V / 1-Phase / 6.6A / NEMA 5-15P |
| Electrical (Optional) | 208–240V / 1-Phase / 3.8A / NEMA 6-15P |
| Cord Length | 6 ft attached cord |
| Dimensions (Overall) | 41" H × 33" W × 22" D (with guard open) |
| Shipping Weight | 220 lbs (99.8 kg) |
| Net Weight | 186 lbs (66.2 kg) |
| Cube Volume | 17.2 ft³ (0.49 m³) |
| Optional Attachments | VS9 slicer, VS9H shredder, ALMFC12 grinder |
| Warranty | 2-year on-site parts & labor |
Watch the following video on a Univex planetary mixer:
- Model:
- SRM12+
- Part Number:
- 101240101
- Voltage:
- 115/208-240
- Phase:
- 1
- Amps:
- 6.6/3.8
- Nema:
- 5-15P/6-15P
- Mixer Speeds:
- 1,2,3,4
- Beater Shaft (RPM):
- 152,228,321,406
- PTO (RPM):
- 117,178,231,316
- Cubic Measure:
- 17.2ft.3 (0.49M3)
- Certifications:
- NSF Approved
For complete product specifications and to download the file, please click below.
For use and maintenance of this equipment, please click below.
To view the warranty in detail and to download the file, please click below.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.
