The Blue Air BLDN-280A 160" Nugget-Style Ice Maker is a powerful, commercial-grade ice maker and water dispenser ideal for high-demand settings. With a robust production capacity of 282 lbs per 24 hours and a 10 lb storage bin, this air-cooled ice maker produces soft, chewable nugget-style ice. The machine features a stainless steel cabinet and evaporator, ensuring durability and longevity. Equipped with a digital self-diagnostic system and removable air filters, it simplifies maintenance and service. Measuring 16"W x 24"D x 35"H (39"H with optional 4" legs), the unit requires a 6-inch clearance for efficient air circulation. Powered by environmentally-friendly R290 refrigerant, it operates on a 115v, single-phase circuit. For sanitation and ease of use, the machine includes an auto-drain mode, adjustable dispensing times, and complies with cULus and ETL sanitation standards.
Service
- Digital self diagnostic system
- Panels easily removed and all components accessible for service.
- Removable/cleanable air filters.
- Allow 6" (15cm) clearance at rear, sides, and top for proper air
- circulation and ease of maintenance/service.
- Auto drain mode to prevent water pollution
Plumbing
- 3/8" water supply line, nominal ID (interior dimension).
- Drain Line: Minimum 3/4” ID hard pipe, PVC, or equivaient
- Maximum time for dispensing ice and water can be adjusted

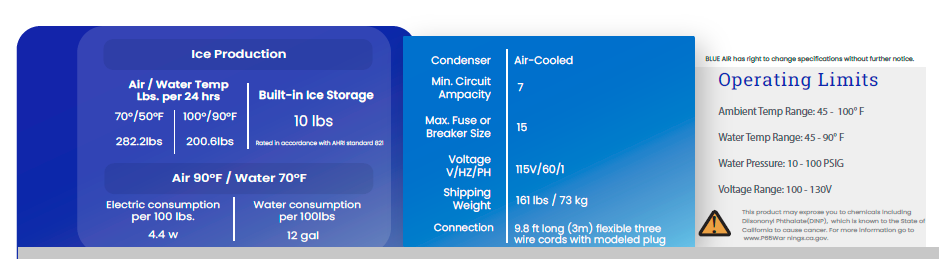

Operating Limits
- Ambient Temp Range: 45 - 100° F
- Water Temp Range: 45 - 90° F
- Water Pressure: 10 - 100 PSIG
- Voltage Range: 100 - 130V
- Model Number:
- BLDN-280A
- Storage Capacity:
- 10 LBs
- Voltage:
- 115V/60/1
- Connection:
- 9.8 ft long (3m) flexible three wire cords with modeled plug
- Product Capacity:
- 282.8 lbs of ice daily
- Refrigerant:
- R290
- Water consumption per 100lbs:
- 12 gal
For complete product specifications and to download the file, please click below.
