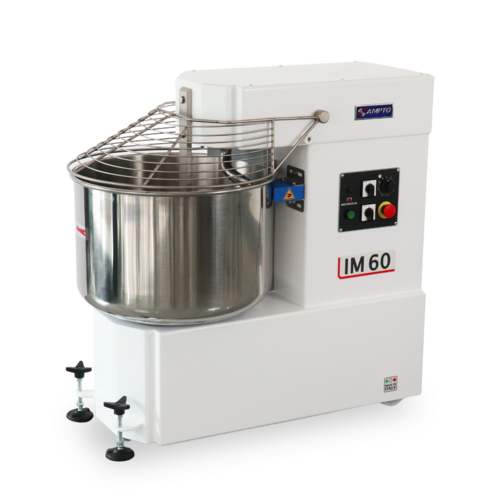

The AMPTO Mecnosud IM60DUS Spiral Mixer is a high-capacity, heavy-duty commercial dough mixer engineered for demanding pizza shops, bakeries, and foodservice operations with large daily production needs. Manufactured in Italy, the IM60DUS features a reinforced steel structure with a stainless steel bowl, spiral hook, and shaft, ensuring durability, hygiene, and consistent performance. Its geared motor with a double-chain drive system provides exceptional torque for uniform dough development, while the integrated timer allows precise control of mixing cycles. Mounted on lockable casters for mobility and stability, the IM60DUS is ideal for high-volume dough production with reliable, repeatable results.
Key Features
- High-capacity commercial spiral dough mixer
- Designed for pizza shops, bakeries, and restaurants
- Heavy-duty stainless steel bowl, spiral hook, and shaft
- Geared motor with double-chain drive system for maximum torque
- Integrated timer for controlled and consistent mixing cycles
- Protective stainless steel safety cover
- Reinforced steel frame with non-toxic painted finish
- Includes casters with brakes for easy movement and secure positioning
- Built for continuous commercial operation
- Simple and durable control panel design
- 1-year parts and labor warranty (US only)
- Model:
- IM60DUS
- Type:
- Commercial Spiral Dough Mixer
- Bowl Volume:
- 75 Liters (80 Qt / 19.8 Gal)
- Dough Capacity:
- 132 lbs (60 kg)
- Flour Capacity:
- 88 lbs (40 kg)
- Bowl Diameter:
- 21.65” (55 cm)
- Bowl Height:
- 14.5” (37 cm)
- Speed Control:
- 2 Speed
- Spiral RPM:
- 84 / 168
- Bowl RPM:
- 15 / 30
- Motor Power:
- 4.5 HP
- Power Supply:
- 220V / 60Hz / Three Phase
- Amps:
- 11
- Plug Type:
- NEMA 5-15P
- External Dimensions(W × D × H):
- 39” × 22.83” × 39.76”
- Plug / Connection:
- Wired - No Plug
- Shipping Dimensions:
- 47” × 32” × 52”
For complete product specifications and to download the file, please click below.
